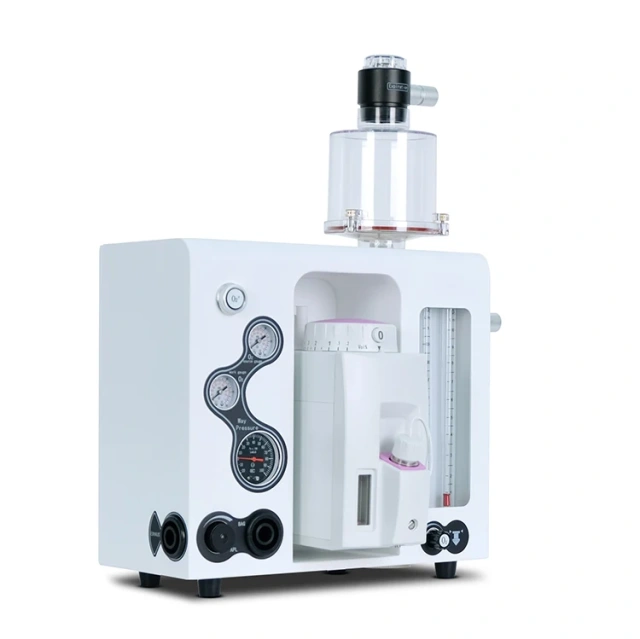

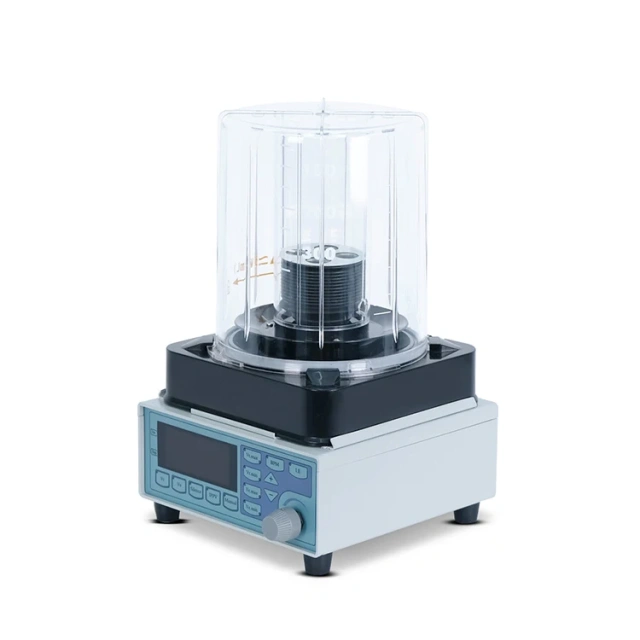

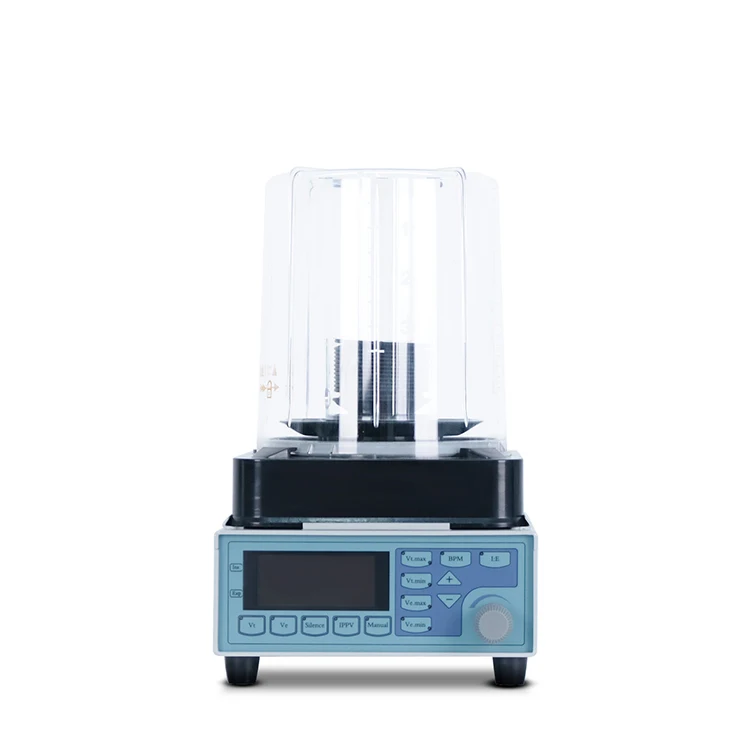

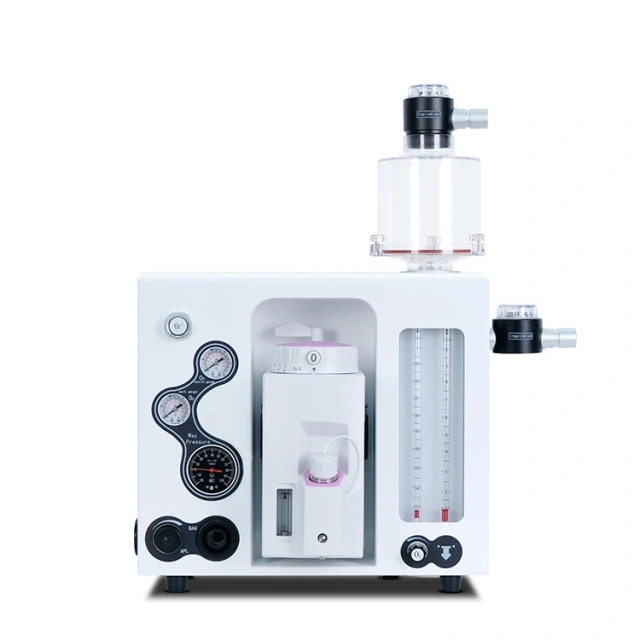

veerinary anesthesia machine with ventilator
Feature:
|
1 |
CE approved portable anesthesia machine. |
|
2 |
Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley. |
|
3 |
Jackson or Bains Absorber is available. |
|
4 |
Specifically designed to accomodate low flow. |
|
5 |
Selectatec-bar and quick change vaporizer mounting device. |
|
6 |
Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment. |
|
7 |
External and reusable soda lime canister, easily watch and replace soda lime. |
|
8 |
With Oxygen flush function to ensure that clinical anesthesia demand,Oxgyen supply demand. |
|
9 |
With APL pressure reducing valve to prevent pressure to hurt the animal, ensure animal safety. |
|
10 |
Wastewater discharge system. |
|
11 |
Visible inspiration and expiration valve. |
|
12 |
Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely. |
|
13 |
Module rack with polyester medical material with superior spray technology, high strength and light weight. |
|
14 |
With transport case, convenient to take and transport. |
|
15 |
Easy to disassemble and assemble all the components, convenient for clean and maintenance. |

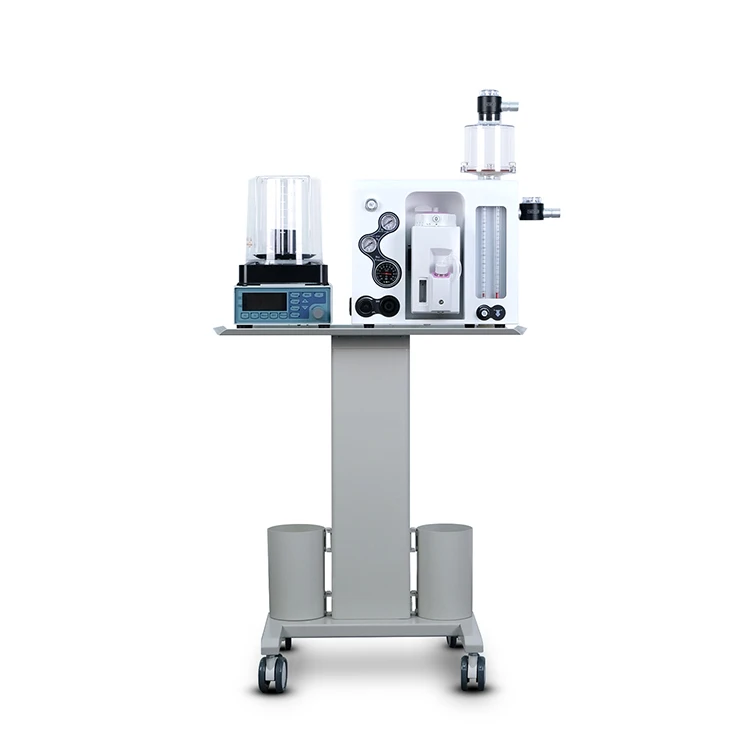

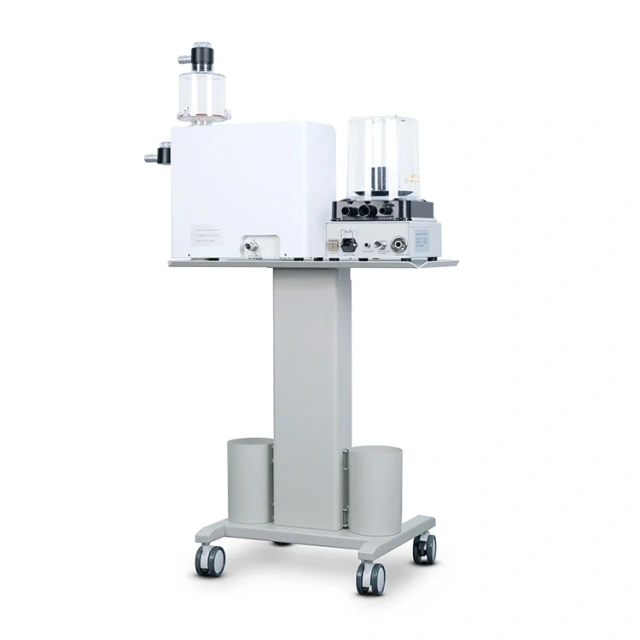

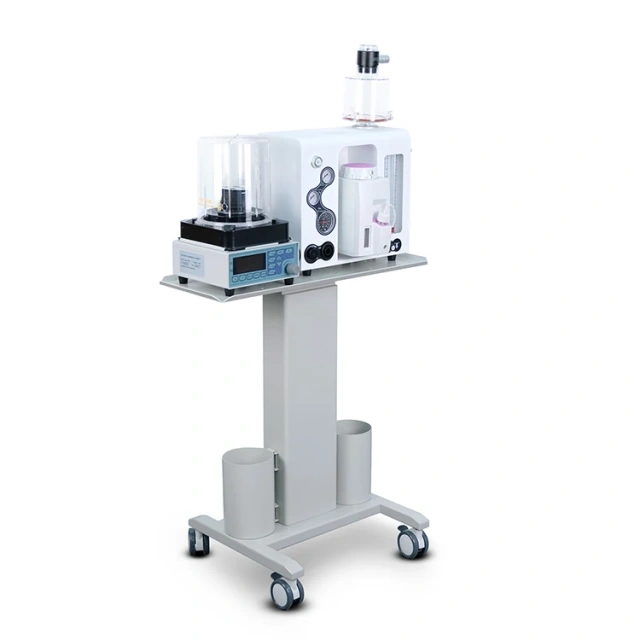

YSAV600MV Pet Hospital Trolley Portable Veterinary Anesthesia Machine
Specification:
Application: Adult and pediatric( 3kg over).
Ventilation mode: Closed, half-closed, half-open.
Tidal volume( Manual Mode): 10~2000ml.
Gas pressure: 0.25~0.65Mpa.
Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M.
APL valve: 0.5~6.0Kpa.
OXYGEN Flush: 25~75L/min.
I:E: As the doctor operation.
BPM: As the doctor operation.
Monitoring: Airway pressure, respiratory mode.
Three gauges: One for Oxygen source pressure.
One for oxygen working pressure.
One for airway pressure.
YSAV600MV Pet Hospital Trolley Portable Veterinary Anesthesia Machine
Vaporizer Specification:
Concentration range:
En flurane 0.2 to 5%
Iso flurane 0.2 to 5%
Halothane 0.2 to 5%
Se voflurane 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
Net Weight: 26kg
Gross Weight: 30kg
Size:86 X51 X 38CM
