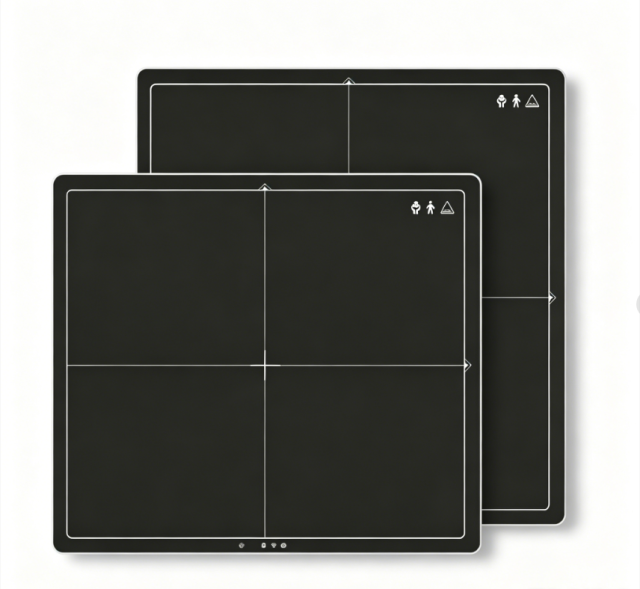

Wireless Flat Panel Detector FTLV14C / FTLV17C

No.FTLV14C / FTLV17C

Key Parameters

Brand: Fatali
Model: FTLV14C / FTLV17C
Product Type: Wireless Flat Panel Detector
Detector Technology: a‑Si TFT + photodiode
Scintillator: CsI
Pixel Pitch: 140 μm
Active Area: FTLV14C: 350 × 427.3 mm | FTLV17C: 433.2 × 433.2 mm
Image Transfer: Wireless (802.11 ax/ac/n/a/g) + Wired backup
AED Support: Yes
Battery Life: 4 hours (normal use), 8 hours (standby)
Durability: Drop resistance up to 70 cm; local load: FTLV14C 120 kg | FTLV17C 300 kg
Core Value: High‑performance wireless flat panel detector delivering mobility, high sensitivity, and reliable digital radiography imaging

GET A QUOTE

Description
Get a quote

The FTLV14C / FTLV17C is a premium wireless flat panel detector developed by Fatali, designed for modern digital radiography. This wireless flat panel detector features advanced a‑Si TFT technology, high‑efficiency CsI scintillator, and robust wireless connectivity, enabling fast, high‑quality imaging with complete mobility. Suitable for hospitals, imaging centers, and clinics, it offers reliable performance, low‑dose sensitivity, and durable construction for daily clinical use.

Core Features and Advantages

Wireless Mobility with Wired Backup
This wireless flat panel detector supports high‑speed wireless communication via 802.11 ax/ac/n/a/g (2.4G & 5 GHz) for free movement during examinations. A wired backup connection ensures stable data transfer when needed, combining flexibility and reliability in one device.
High‑Sensitivity Imaging & Low‑Lag Performance
Equipped with a CsI scintillator and a‑Si TFT array, the detector delivers 574 LSB/μGy sensitivity, enabling high‑quality imaging at lower radiation doses. The <0.5% lag (after 60 seconds) ensures clear sequential images, essential for dynamic and continuous radiography workflows.
AED Integration & Smart System Functions
Built‑in AED (Automatic Exposure Detection) enables hands‑free imaging, improving workflow efficiency and reducing user intervention. The system supports both wireless and wired transfer, ensuring seamless integration with standard digital radiography setups.
High Durability for Clinical Environments

The wireless flat panel detector is engineered for heavy clinical use:

Drop resistance: up to 70 cm
Local load capacity: FTLV14C 120 kg; FTLV17C 300 kg
Robust housing: compliant with ISO 4090 standards
These features ensure reliability in busy, demanding hospital environments.

Long‑Lasting Battery & Wide Environmental Tolerance

Battery autonomy: 4 hours (normal use), 8 hours (standby)
Operating temperature: 10–35°C
Operating/storage humidity: 10–90% RH
Storage temperature: -10–50°C
The detector maintains stable performance across diverse clinical and transport conditions.

Technical Specifications Table

Parameter	FTLV14C	FTLV17C
Brand	Fatali	Fatali
Model	FTLV14C	FTLV17C
Product Type	Wireless Flat Panel Detector	Wireless Flat Panel Detector
Detector Technology	a‑Si TFT + photodiode	a‑Si TFT + photodiode
Scintillator	CsI	CsI
Pixel Pitch	140 μm	140 μm
Active Area	350 × 427.3 mm	433.2 × 433.2 mm
Wireless Standard	802.11 ax/ac/n/a/g (2.4G & 5 GHz)	802.11 ax/ac/n/a/g (2.4G & 5 GHz)
Wired Transfer	Supported	Supported
AED	Yes	Yes
Sensitivity	574 LSB/μGy	574 LSB/μGy
Lag	<0.5% after 60 seconds	<0.5% after 60 seconds
DQE (1 lp/mm)	0.48	0.48
Maximum Linear Dose	88 μGy	88 μGy
Battery Life (Normal)	4 hours	4 hours
Battery Life (Standby)	8 hours	8 hours
Drop Height Resistance	70 cm	70 cm
Local Load Capacity	120 kg	300 kg
Operating Temperature	10–35°C	10–35°C
Operating Humidity	10–90% RH	10–90% RH
Storage Temperature	-10–50°C	-10–50°C
Storage Humidity	10–90% RH	10–90% RH

Application Scenarios

The Fatali FTLV14C / FTLV17C wireless flat panel detector is ideal for:

Hospital Radiology Departments: General radiography, chest, abdominal, skeletal imaging
Mobile Radiography: Wireless mobility for emergency and bedside examinations
Imaging Centers & Clinics: High‑sensitivity, low‑dose digital radiography
Orthopedic & Trauma Imaging: Durable design for high‑load and emergency use
Veterinary Radiography: Suitable for large and small animal imaging workflows
