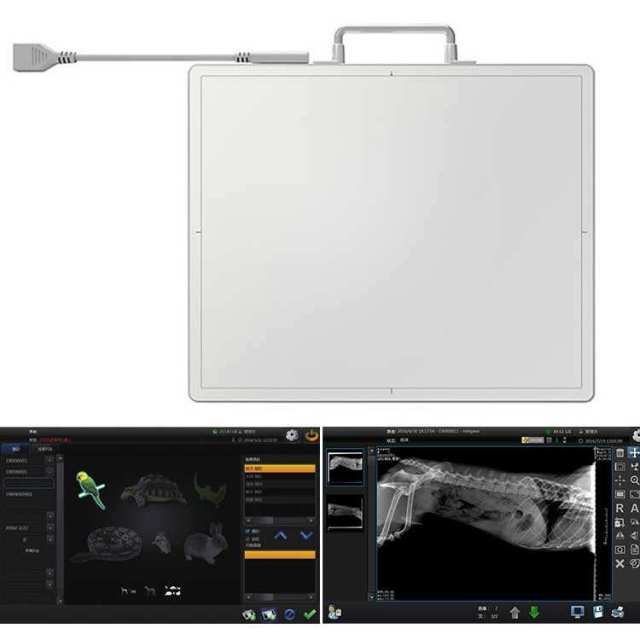

Wired & Wireless Portable Flat Panel Detector for Veterinary Digital Radiography

No.FTL-FPD4343Z VET

Key Parameters

Detector Technology: Amorphous Silicon (a-Si)
Scintillator Options: GOS or CsI
Image Size: 43 × 43 cm
Pixel Matrix: 3072 × 3072
Pixel Pitch: 140 μm
AD Conversion: 16-bit
Spatial Resolution: 3.6 LP/mm
Battery Standby Time: ≥ 8 hours
Data Interface: GigE / IEEE 802.11ac (up to 1300Mbps)
Image Acquisition Time: 1s (Wired) / 2~3s (Wireless)
Weight: 3.9kg (Wireless with Batteries) / 4.5kg (Wired)
Ingress Protection: IPX3
Certifications: CE, FDA Approved

GET A QUOTE

Description
Get a quote

The FTL-FPD4343Z VET is a high-performance, cassette-sized flat panel detector developed by Fatali, engineered for veterinary digital radiography. Available in both wired and wireless configurations, this flat panel detector delivers exceptional imaging performance with versatile connectivity, ensuring compatibility with all types of digital X-ray machines. Backed by CE and FDA certifications, it features a reliable 8-hour battery standby time, high-speed IEEE 802.11ac wireless transmission (up to 1300Mbps), and outstanding image quality with high DQE (Detective Quantum Efficiency) and resolution. Equipped with a highly sensitive Automatic Exposure Detection (AED) function, it enables seamless connection and synchronization with any X-ray generator, streamlining workflows for veterinary clinics and practices.

Core Features and Advantages

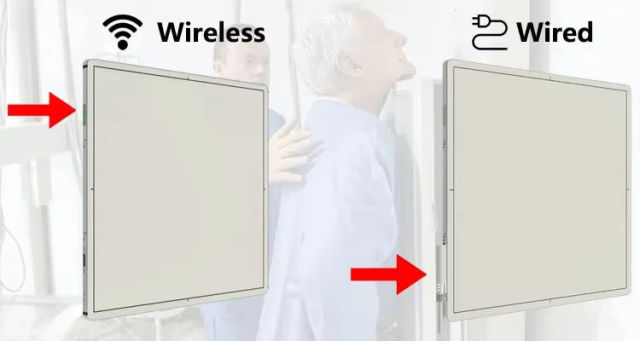

1.Dual Connectivity Flexibility

The FTL-FPD4343Z VET flat panel detector supports both wired (GigE) and wireless (IEEE 802.11ac) operation, offering unmatched flexibility for diverse clinical setups. The wireless version delivers high-speed data transfer up to 1300Mbps, eliminating cable constraints for mobile or on-site examinations, while the wired option ensures stable, uninterrupted performance for critical imaging tasks.

2.Superior Image Quality

Leveraging amorphous silicon (a-Si) technology and a choice of GOS or CsI scintillators, this flat panel detector produces diagnostic-grade images with high DQE and a spatial resolution of 3.6 LP/mm. The 140 μm pixel pitch and 16-bit AD conversion capture fine anatomical details, supporting accurate veterinary assessments for small and large animals alike.

3.Efficient Workflow & Reliable Battery

With a minimum 8-hour battery standby time, the wireless configuration supports extended imaging sessions without frequent recharging. Fast image acquisition times (1s for wired, 2~3s for wireless) reduce patient waiting times and enhance clinic productivity, while the sensitive AED function optimizes exposure parameters to minimize retakes and radiation exposure.

4.Robust & Certified Design

CE and FDA approved, the FTL-FPD4343Z VET flat panel detector is built with a durable carbon and alloy housing, offering IPX3 water tightness protection. It operates reliably in environments with temperatures from 5–35℃ and humidity from 10–75% RH, ensuring durability in demanding veterinary clinical settings.

Technical Specifications Table

Parameter	GOS Scintillator Specification	CsI Scintillator Specification
Brand	Fatali	Fatali
Model	FTL-FPD4343Z VET	FTL-FPD4343Z VET
Detector Technology	Amorphous Silicon (a-Si)	Amorphous Silicon (a-Si)
Scintillator	GOS	CsI
Image Size (cm)	43 × 43	43 × 43
Pixel Matrix	3072 × 3072	3072 × 3072
Pixel Pitch (μm)	140	140
A/D Conversion (bit)	16	16
Minimum Detectable Dose (RQA5, nGy)	20	14
Maximum Linear Dose (RQA5, μGy)	150	110
MTF @ 1.0 LP/mm	0.51/0.56/-	0.60/0.65/-
MTF @ 2.0 LP/mm	0.22/0.24/-	0.30/0.33/-
MTF @ 3.0 LP/mm	0.09/0.11/-	0.15/0.18/-
DQE @ 0.0 LP/mm (2.5μGy RQA5)	0.48/0.50/-	0.62/0.66/-
DQE @ 1.0 LP/mm (2.5μGy RQA5)	0.30/0.32/-	0.43/0.45/-
DQE @ 2.0 LP/mm (2.5μGy RQA5)	0.14/0.15/-	0.30/0.32/-
DQE @ 3.0 LP/mm (2.5μGy RQA5)	0.04/0.05/-	0.13/0.15/-
Ghost (300μGy, 60s)	<0.25%	<0.25%
Spatial Resolution (LP/mm)	3.6	3.6
Image Acquisition Time (s)	1s (Wired) / 2~3s (Wireless)	1s (Wired) / 2~3s (Wireless)
X-ray Voltage Range (KV)	40-150	40-150
Battery Standby Time (h)	≥ 8	≥ 8
Data Interface	GigE / IEEE 802.11ac (up to 1300Mbps)	GigE / IEEE 802.11ac (up to 1300Mbps)
Power Dissipation (W)	20	20
Adapter Input	AC 100-240V, 50-60Hz	AC 100-240V, 50-60Hz
Adapter Output	DC 24V, 60W	DC 24V, 60W

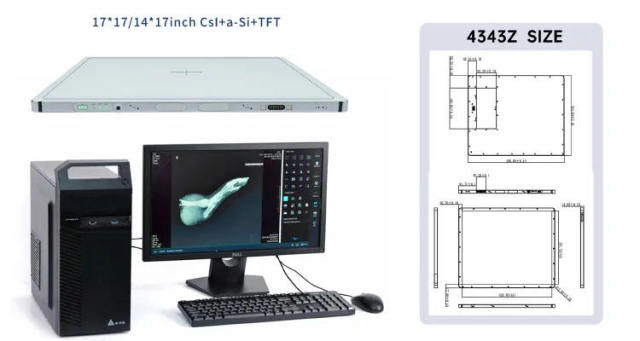

Dimensions (cm)	46 × 46 × 1.5	46 × 46 × 1.5
Weight (kg)	3.9 (Wireless with Batteries) / 4.5 (Wired)	3.9 (Wireless with Batteries) / 4.5 (Wired)
Detector Housing Material	Carbon, Alloy	Carbon, Alloy
Water Tightness	IPX3	IPX3
Operating Environment	5-35℃, 10-75% RH	5-35℃, 10-75% RH
Certifications	CE, FDA Approved	CE, FDA Approved
