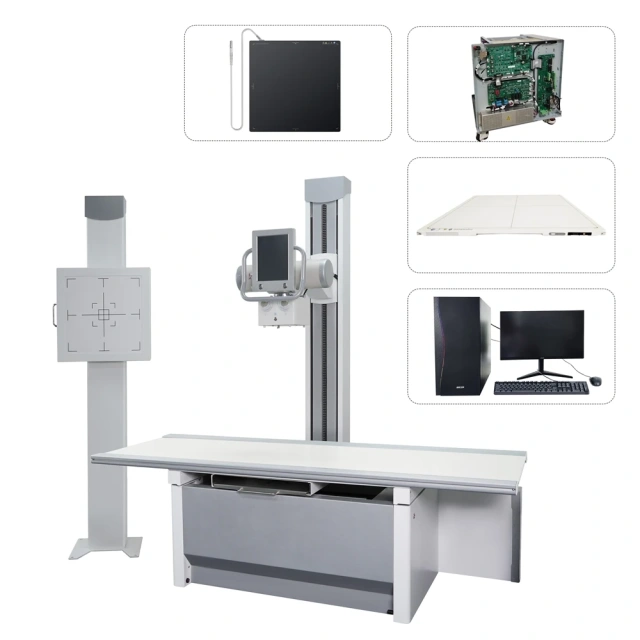

New Model Customized Bucky Stand FTL-SC2 for High Accuracy High-Energy X-Ray Machine
|
||||||||
|
Technical Specification
|
||||||||
|
Parameter
|
FTLF20
|
FTLF32
|
FTLF50
|
FTLF65
|
||||
|
Max.kW
|
20KW
|
32KW
|
5OKW
|
65KW
|
||||
|
Power Supply
|
5OHZ. 60HZ wire diameter>4mm2, internal resistance-<0.50, 20/32/50kW(220V B8OV ovailable), 65kW(only 380V)
|
|||||||
|
mA
|
10~250
|
10~400
|
10~630
|
10~800
|
||||
|
mAS
|
0.1~200
|
0.1~320
|
0.4~1000
|
0.4~1000
|
||||
|
KV
|
40-125kV, stepping by 1kV
|
40-150kV, stepping by 1kV
|
||||||
|
Exposure Time
|
0.001-10s adjustable: stepping by 1ms
|
|||||||
|
Focus
|
Dual focus: 1.0*1.0mm/2.0*2.0mm
|
Duál focus:0.6*0.6mm/1.2*1.2mm
|
||||||
|
Rotating Speed & Heat Capacity
|
2800prm/130OKHU
|
2800prm/1300KHU
|
||||||
|
Inverter Frequency
|
50KHZ-220KHZ
|
|||||||
|

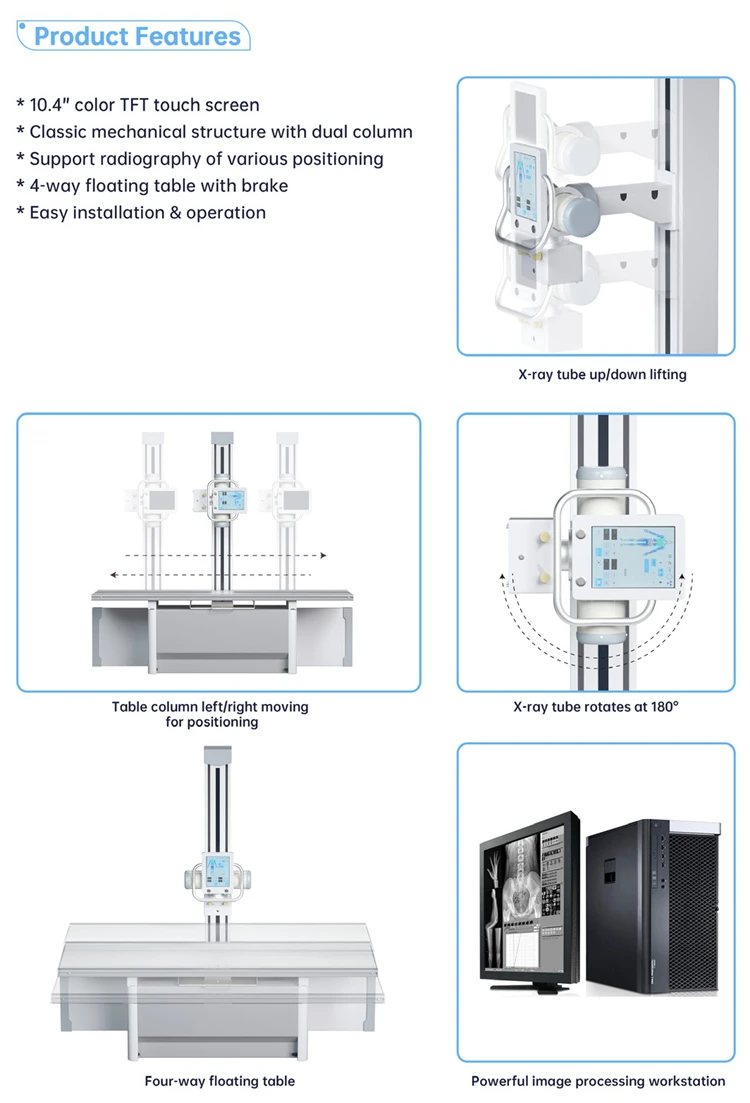

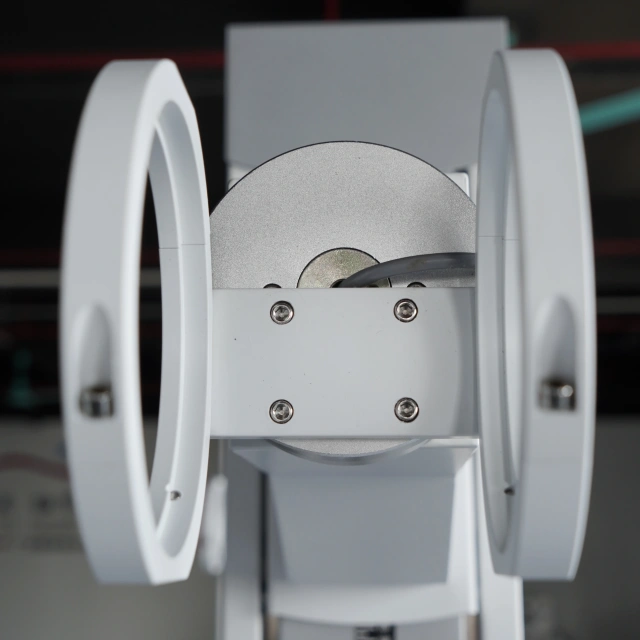

Tube Movement
|
Up & down lift, left & right rotation
|
|||||||
|
Column
|
Left & right movable
|
|||||||
|
Radiography Table
|
Four-way floating
|
|||||||
|
Flot Panel Detector
|
Amorphous silicon cesium iodide
|
|||||||
|
Detector Size
|
17*17 inch
|
|||||||
|
Pixel Resolution
|
3072*3072
|
|||||||
|
Pixel Pitch
|
139um
|
|||||||
|
A/D Conversion
|
16bits
|
|||||||
|
Spatial Resolution
|
3.6lp/mm
|
|||||||
|
Size
|
460*460*15mm
|
|||||||
|
Interface
|
Wired (Wireless is optional)
|
|||||||
|
Software
|
Professional medical software with multi-anguages available
|
|||||||
|
Workstation
|
Intel i5 CPU, 8G memory. 2G card,128G SSD, PCFE, R232,22.5 inch display
Other options are available upon request |
|||||||
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
