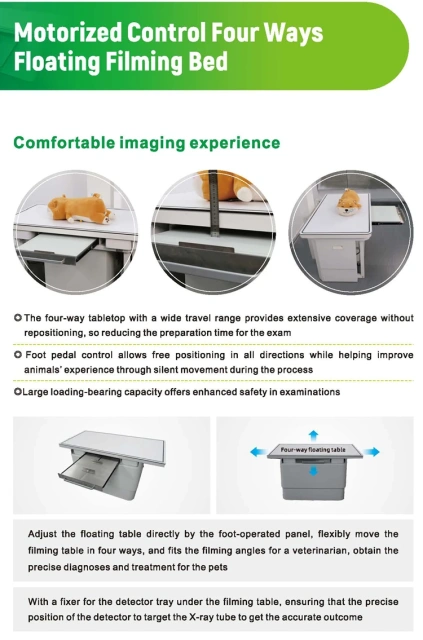

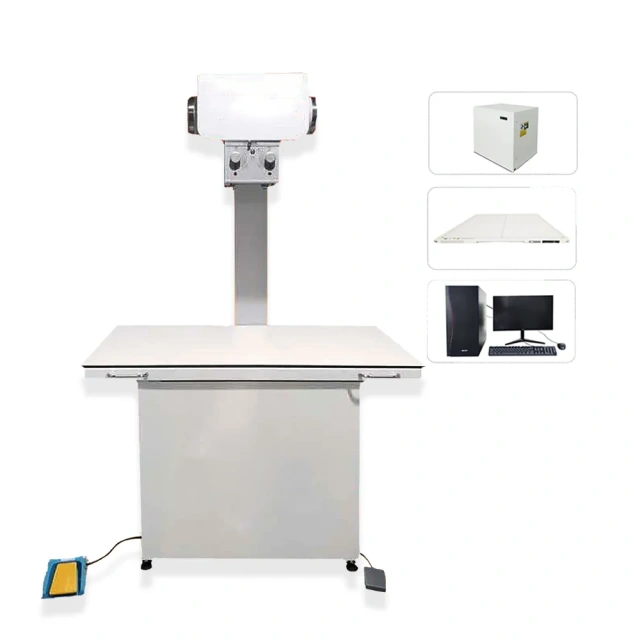

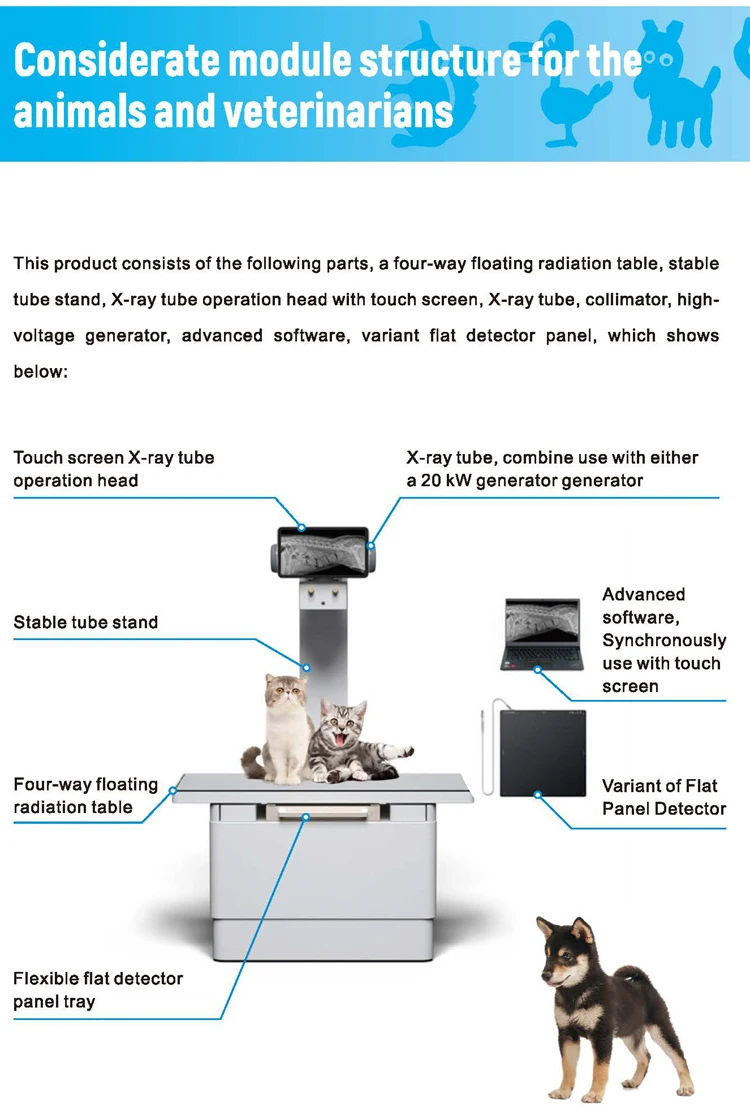

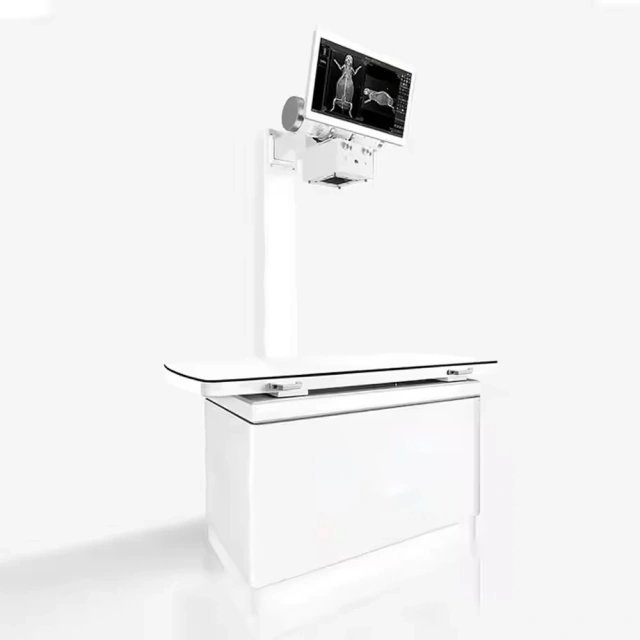

Our Veterinary X-ray Tube Stand with Exam Bed is specially designed for small to medium-sized animal radiography. This all-in-one solution offers stable tube positioning, adjustable height, and a comfortable examination table, making it ideal for veterinary clinics and animal hospitals.
FALYL cat dog x ray machine Bed +Stand digital veterinary dr x ray veterinary 10kw x ray imaging equipment animal radiography x ray machine | ||
Product Model | FTL-5.6 | |
Product describtion/Type | Portable Combined High Frequency X-ray | |
Working frequency | 80~200kHz | |
Mains phase/Voltage | 100~240VAC/48VDC | |
Frequency | 50Hz/60Hz | |
Nominal/Max Power | 5.6KW | |
KV Range | 40~125KV | |
KV Rising Time | ≤1ms@100KV(10%~90%) | |
Accuracy of KV | ±5% | |
Output Max mA | 100mA | |
Accuracy of Tube Current | ±(5%+1mA)@210ms | |
±20%@<10ms | ||
mAs Range Non-AEC | 0.1~320mAs | |
Accuracy of mAs | ±(5%+0.2mAs)@>5ms | |
±(10%+0.2mAs)@≤5ms | ||
Exposure Time Range | 2ms~10000ms | |
Accuracy Exposure Time | ±(2%+0.2ms)@>5ms | |
±(5%+1ms)@≤5ms | ||
Norminal Focal Spot Size | 0.6mm/1.8mm | |
Anode Disk Target Angle | 15 | |
Communication | RS232/WIFI | |
Certificate CE/Registration Certificate | ISO13485 | |
Size | 390*250*200(mm*mm'mm) | |
Weight Kg 14.5 Kg | ||
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
