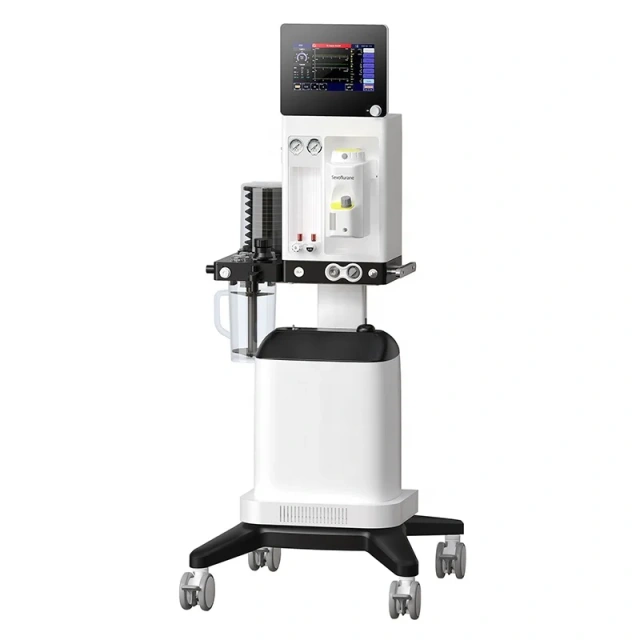

Veterinary Anesthesia System Animals Medical Trolley Gas Anesthesia

No.FTLAV-AMV5

FTLAV-AMV5 veterinary anesthesia system adheres to the concept of making animal anesthesia safer, simpler, and more reliable, and is committed to leading new experiences in animal anesthesia. Now available as a veterinary anesthesia machine for sale, it is suitable for clinical surgeries in dogs, cats, pigs, monkeys, rodents, reptiles, birds, and more.

GET A QUOTE

Description
Get a quote

Veterinary Anesthesia System/Vet Anesthesia Machine

Model: FTLAV-AMV5
FTLAV-AMV5 veterinary anesthesia system adheres to the concept of making animal anesthesia safer, simpler, and more reliable, and is committed to leading new experiences in animal anesthesia. Now available as a veterinary anesthesia machine for sale, it is suitable for clinical surgeries in dogs, cats, pigs, monkeys, rodents, reptiles, birds, and more.

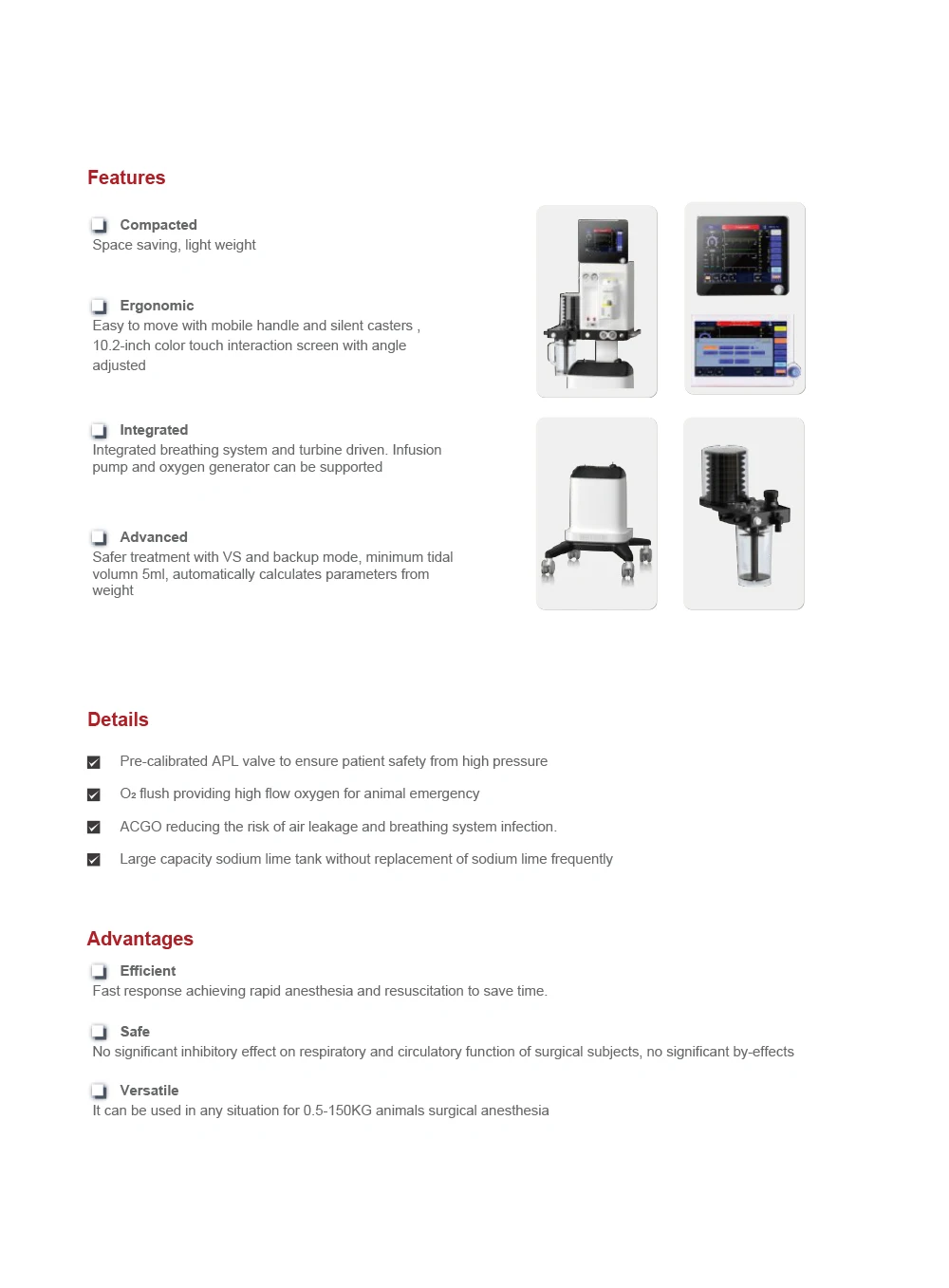

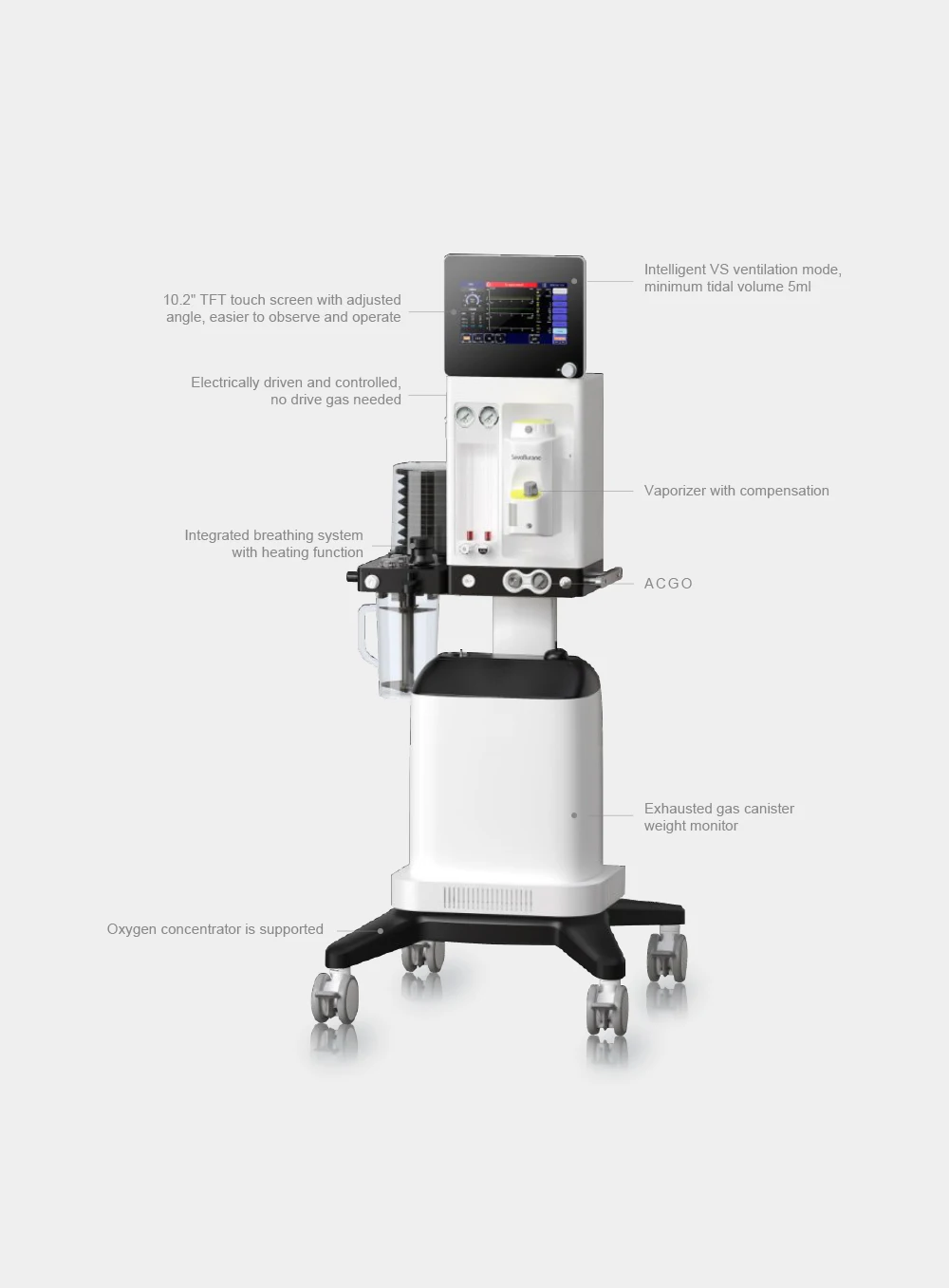

FeaturesCompacted:Space saving, light weight
Ergonomic:Easy to move with mobile handle and silent casters10.2-inch color touch interaction screen with angle adjusted
Integrated:Integrated breathing system and turbine driven. Infusion pump and oxygen generator can be supported
Advanceds:Safer treatment with VS and backup mode, minimum tidal volumn 5ml, automatically calculates parameters from weight
Details:Pre-calibrated APL valve to ensure patient safety from high pressureO2 flush providing high flow oxygen for animal emergencyACGO reducing the risk of air leakage and breathing system infectionLarge capacity sodium lime tank without replacement of sodium lime frequently
AdvantagesEfficient:Fast response achieving rapid anesthesia and resuscitation to save time.
Safe:No significant inhibitory effect on respiratory and circulatory function of surgical subjects, no significant by-effects.
Versatile:It can be used in any situation for 0.5-150KG animals surgical anesthesia.

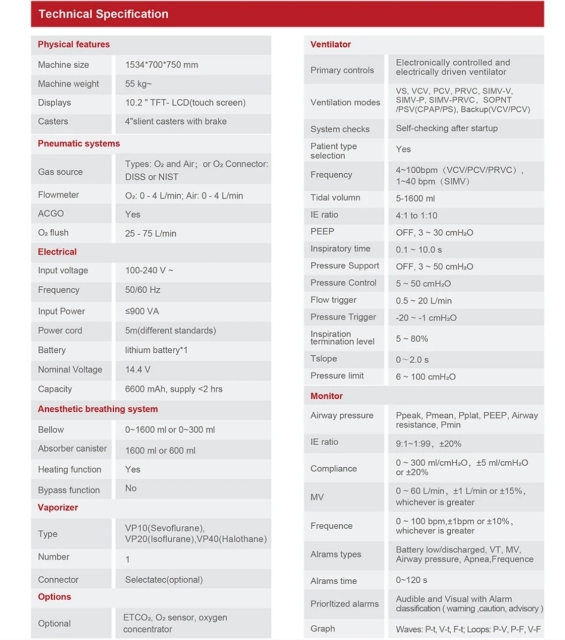

Specification
Physical features
Machine size	1534700750 mm
Machine weight	55 kg
Displays	10.2 " TFT- LCD(touch screen)
Casters	4"slient casters with brake
Pneumatic systems
Gas source	Types: Oz and Air; or O₂ Connector: DISS or NIST
Flow meter	Oz:0-4 L/min; Air:0-4 L/min
ACGO	Yes
O₂ flush	25 -75 L/min
Electrical
Input voltage	100-240V
Frequency	50/60 Hz
Input Power	≤900 VA
Power cord	5m(different standards)
Battery	lithium battery*1
Nominal Voltage	14.4 V
Capacity	6600 mAh, supply <2 hrs
Anesthetic breathing system
Bellow	0~1600 ml or 0~300 ml
Absorber canister	1600 ml or 600 ml
Heating function	Yes
Bypass function	NO
Vaporizer
Type	VP10(Sevoflurane),VP20(lsoflurane),VP40(Halothane)
Number	1
Connector	Selectatec(optional)
Optional	ETCO2, O2 sensor, oxygen concentrator

Key attributes

Industry-specific attributes

Properties:Diagnosis & Injection

Other attributes

Place of Origin:Guangdong, China

Brand Name:Fatali-Med

Model Number:FTLAV760BV

Product name:Veterinary Anesthesia Ventilator

Application:Animals hopital

Size:1534*700*750 mm

Weight:55 kg

Display:10.2 " TFT- LCD(touch screen)

Casters:4"slient casters with brake

Gas source

Types: Oz and Air; or O2 Connector: DISS or NIST

Flow meter:Oz:0-4 L/min; Air:0-4 L/min

ACGO:Yes

O2 flush:5 -75 L/min

Why Choose Us

Company Profile

Our Advantages

Transportation

FAQ

1. What is the MOQ?
Re: Any quantity is available.
2.Where to use?
Re: Clinic,hospital,community inspection,battlefield,university,laboratory,government tender,distributors...
3.Can you provide other power?
Re: Yes,we have different power for your selection.
4.Do you have floor-mounted or mobile for selections
Re: Yes.we have both floor mounted and mobile.
5.What is your production time?
Re: Our production time is normally around 15 days for 1~5 sets quantity.
