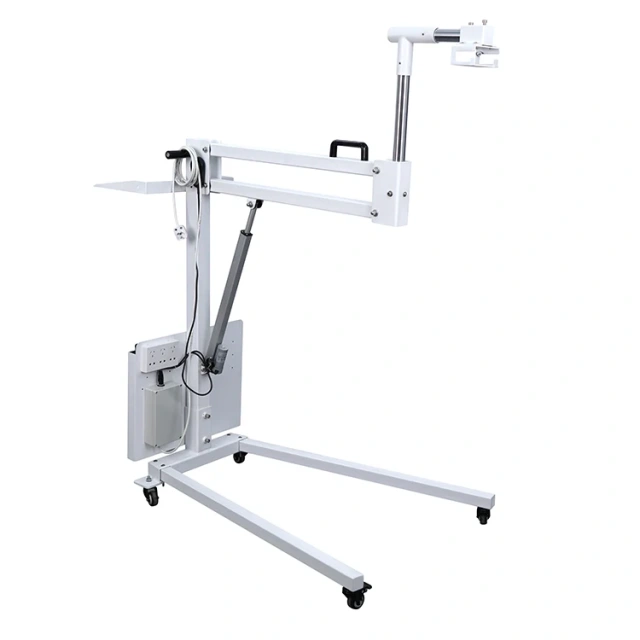

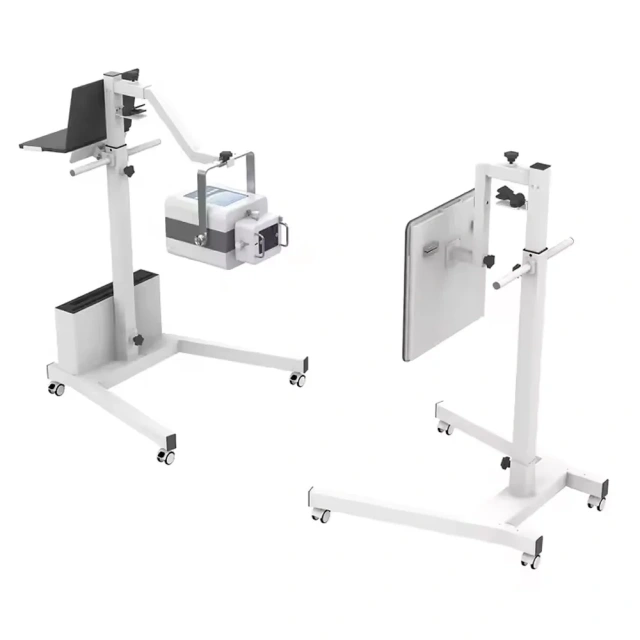

Adjustable vertical height to accommodate different patient positions.
Stable base with anti-slip feet or floor bolts.
Compatible with digital and analog X-ray detectors, film cassettes, or bucky trays.

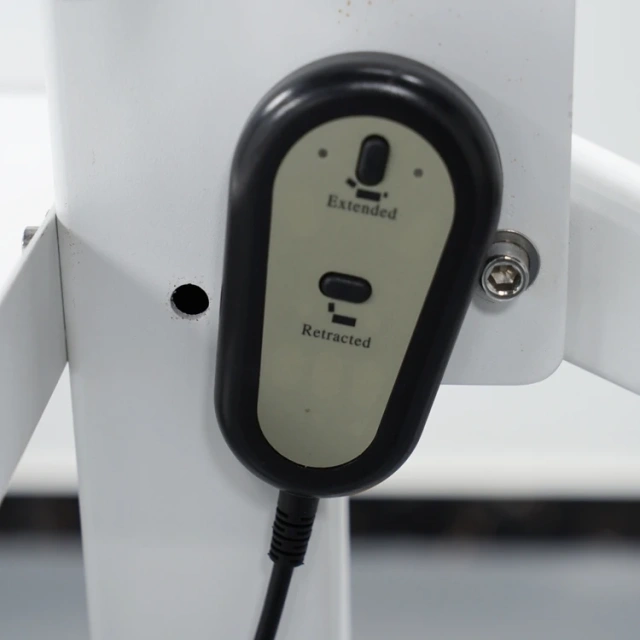

Smooth vertical movement via manual or electric control.
Designed to support standing or seated patients.
|

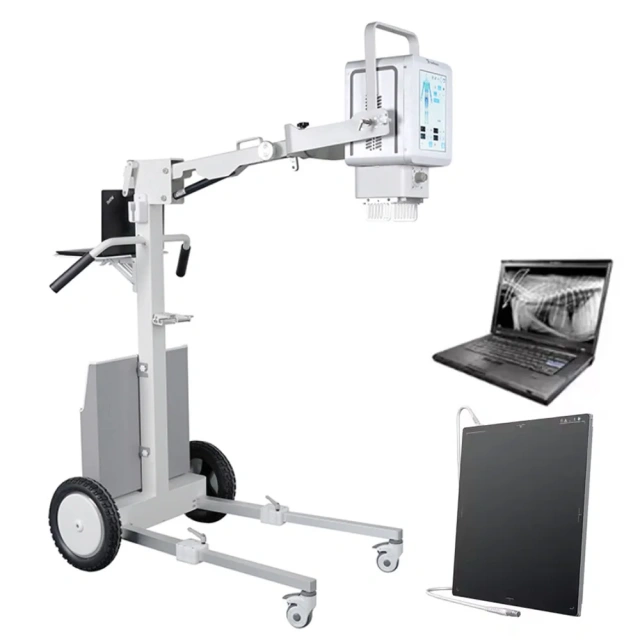

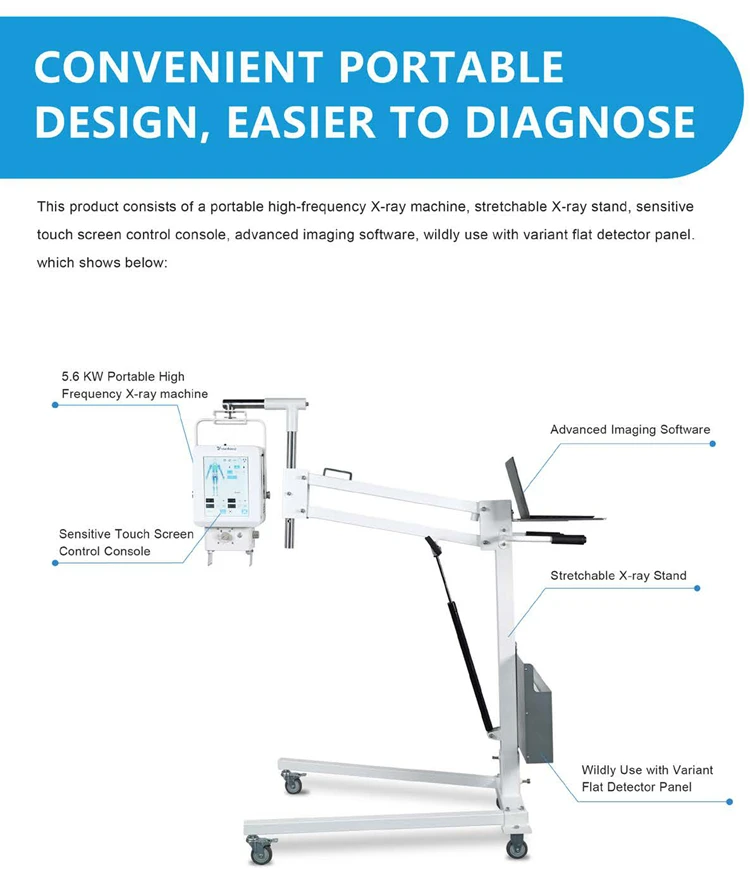

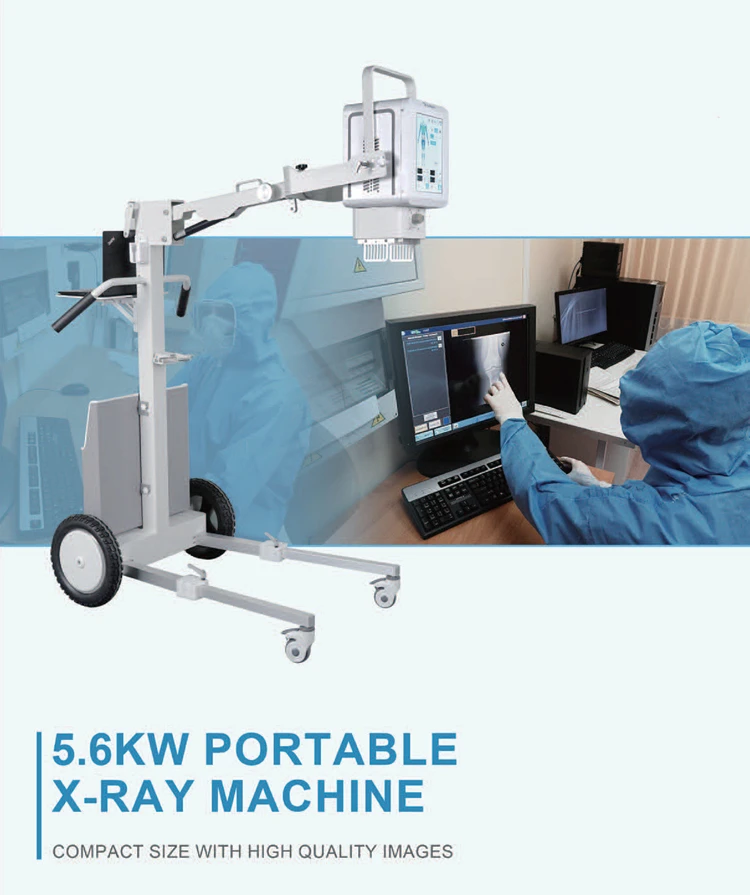

High Quality Xray Stand FTL-PS1 for Digital X-ray Machine High Frequency And High Penetration X-ray Inspection Tools
|
||||||||
|

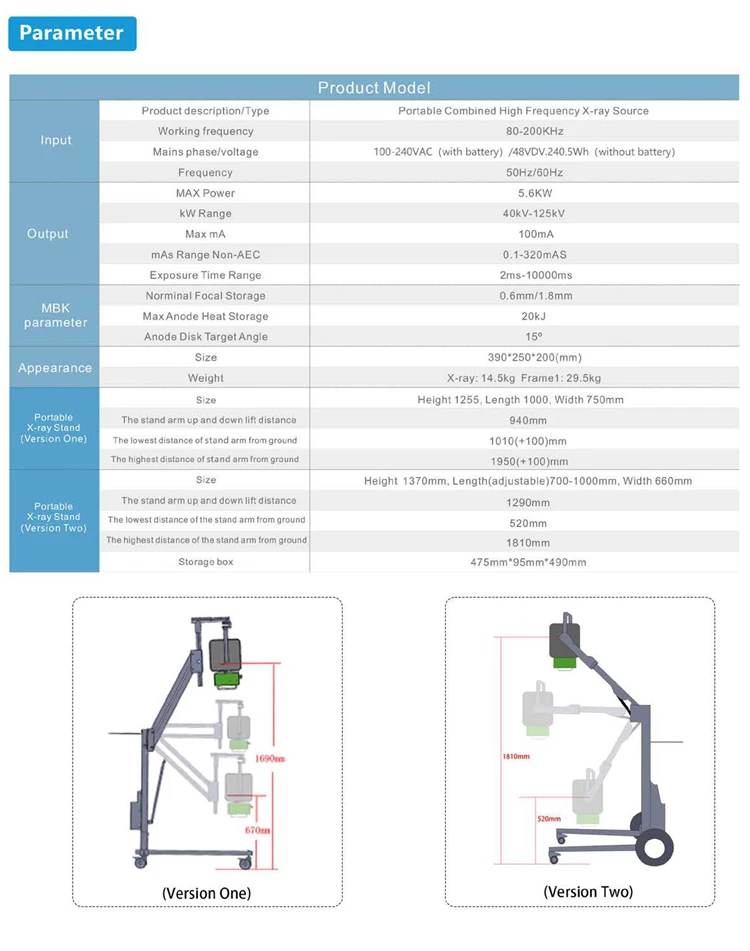

Technical Specification
|
||||||||
|
Generator
|
Product Model
|
FTLF056-PD
|
||||||
|
Product describtion/Type
|
Portable Combined High Frequency X-ray
|
|||||||
|
Working frequency
|
80~200kHz
|
|||||||
|
Input
|
||||||||
|
Mains phase/Voltage
|
100~240VAC/48VDC
|
|||||||
|
Frequency
|
50Hz/60Hz
|
|||||||
|
Nominal/Max Power
|
5.6KW
|
|||||||
|
KV Range
|
40~125KV
|
|||||||
|
KV Rising Time
|
≤1ms@100KV(10%~90%)
|
|||||||
|
Accuracy of KV
|
±5%
|
|||||||
|
Output Max mA
|
100mA
|
|||||||
|
Accuracy of Tube Current
|
±(5%+1mA)@210ms
|
|||||||
|
±20%@<10ms
|
||||||||
|
mAs Range Non-AEC
|
0.1~320mAs
|
|||||||
|
Accuracy of mAs
|
±(5%+0.2mAs)@>5ms
|
|||||||
|
±(10%+0.2mAs)@≤5ms
|
||||||||
|
Exposure Time Range
|
2ms~10000ms
|
|||||||
|
Accuracy Exposure Time
|
±(2%+0.2ms)@>5ms
|
|||||||
|
±(5%+1ms)@≤5ms
|
||||||||
|
Norminal Focal Spot Size
|
0.6mm/1.8mm
|
|||||||
|
MBK parameters Max Anode Heat Storage
|
20kJ
|
|||||||
|
Anode Disk Target Angle
|
15
|
|||||||
|
Communication
|
RS232/WIFI
|
|||||||
|
Certificate CE/Registration Certificate
|
ISO13485
|
|||||||
|
Flat Panel
Detectors |
Detector Technology
|
a-Si
|
||||||
|
Scintillator
|
CsI
|
|||||||
|
Image Size
|
43×43 cm
|
|||||||
|
Pixel Matrix
|
3072×3072 (17×17 in)
|
|||||||
|
Pixel Pitch
|
140 μm
|
|||||||
|
A/D Conversion
|
16 bit
|
|||||||
|
Minimum Detectable Dose
|
14 nGy
|
|||||||
|
Maximum Linear Dose (RQA5)
|
110 μGy
|
|||||||
|
Spatial Resolution
|
3.6 LP/mm
|
|||||||
|
Data Interface
|
GigE /802.11ac
|
|||||||
|
Power Dissipation
|
20 W
|
|||||||
|
Adapter Input
|
AC 100-240V,50-60Hz
|
|||||||
|
Dimensions
|
46×46×1.5 cm
|
|||||||
|

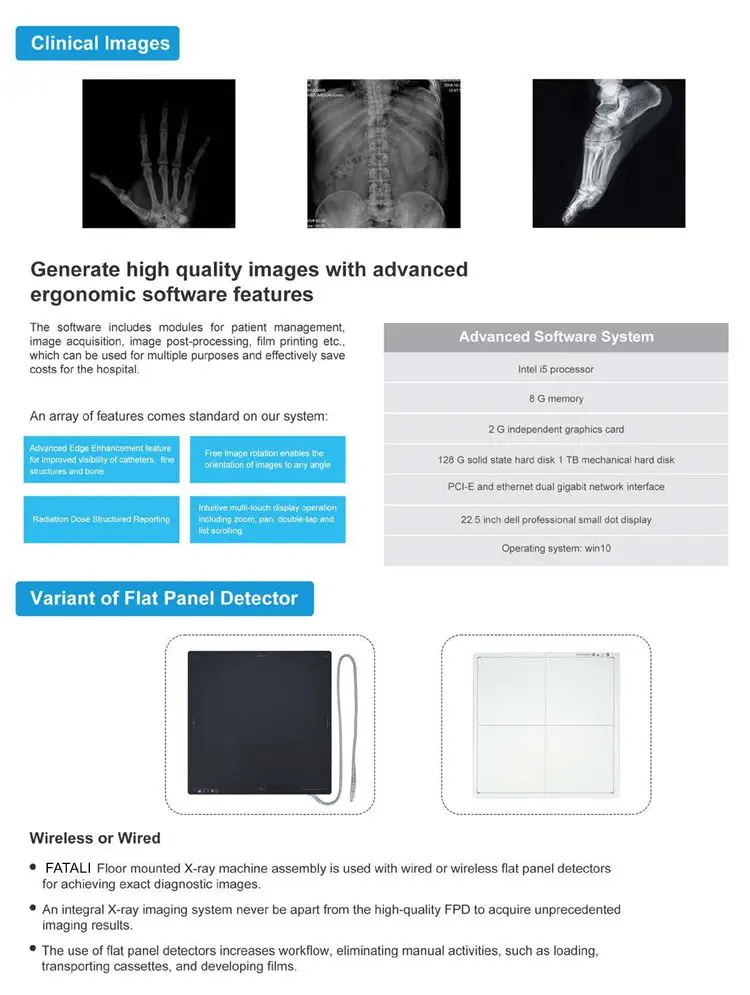

Computer
|
Intel i5 processor ;
8 G memory; 2 G independent graphics card; 128 G solid state hard disk 1 TB mechanical hard disk; PCI-E and ethernet dual gigabit network interface; 22.5 inch dell professional small dot display; operating system: win10. |
|||||||
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
