Specification
|
|
|
Pneumatically driven electronically controlled system
|
|
|

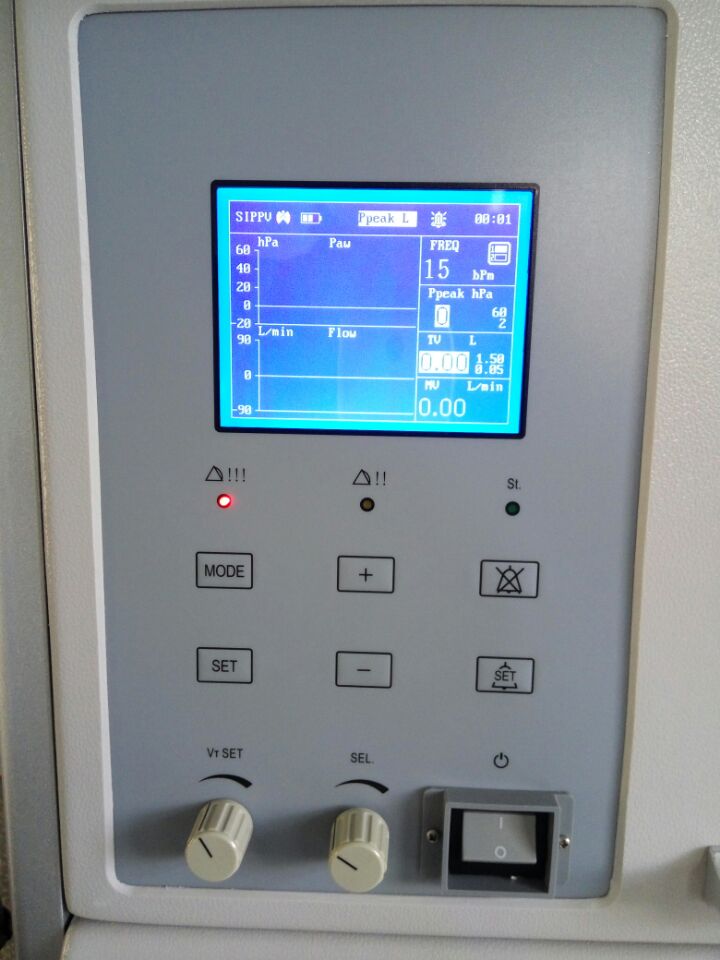

Built-in ventilator, 5.4” LCD display screen
|
|
|
With 1 patient circuit for adult (Option: patient circuit for children).
|
|
|
4-tube flowmeters, O2 & N2O ;0.1 L/Min ~ 10 L/Min;
|
|
|
One vaporizer: Choose from Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
|
|
|
Oxygen Flush:
|
25~75 L/Min;
|
|
Respiration Mode:
|
IPPV, SIPPV(VCV), IMV, SIMV, PEEP, Manu, Sigh
|
|
Tidal Volume:
|
0~1500 mL;
|
|
I:E:
|
4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0, 1:2.5, 1:3, 1:4;
|
|
Respiration Frequency:
|
1~99bpm;
|
|
PEEP:
|
1~10 hPa;
|
|
Ptr:
|
-10~10 hPa;
|
|
CO2 absorber capacity:
|
1 kg
|
|
Lung compliance:
|
≤ 30 mL/kPa;
|
|
IMV frequency:
|
1~12bpm
|
|
Inspiratory Plateau:
|
0~1S;
|
|
Alarm parameter:
|
upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction,battery low power
|
