Fatali-Med offers a full range of high-performance multi-slice CT scanning systems tailored for hospitals and imaging centers. Whether you're performing neurological, thoracic, abdominal, or vascular diagnostics, our 16/32/64/128 slice CT scanners provide the resolution and speed needed for precise, real-time imaging.
These CT systems are equipped with:
Intelligent dose management for patient safety
High-speed image acquisition and 3D reconstruction
Intuitive user interface and DICOM compatibility
Compact design with low maintenance requirements
With customizable configurations, our CT scanners help healthcare professionals diagnose with confidence and improve patient outcomes in routine and emergency settings.
|

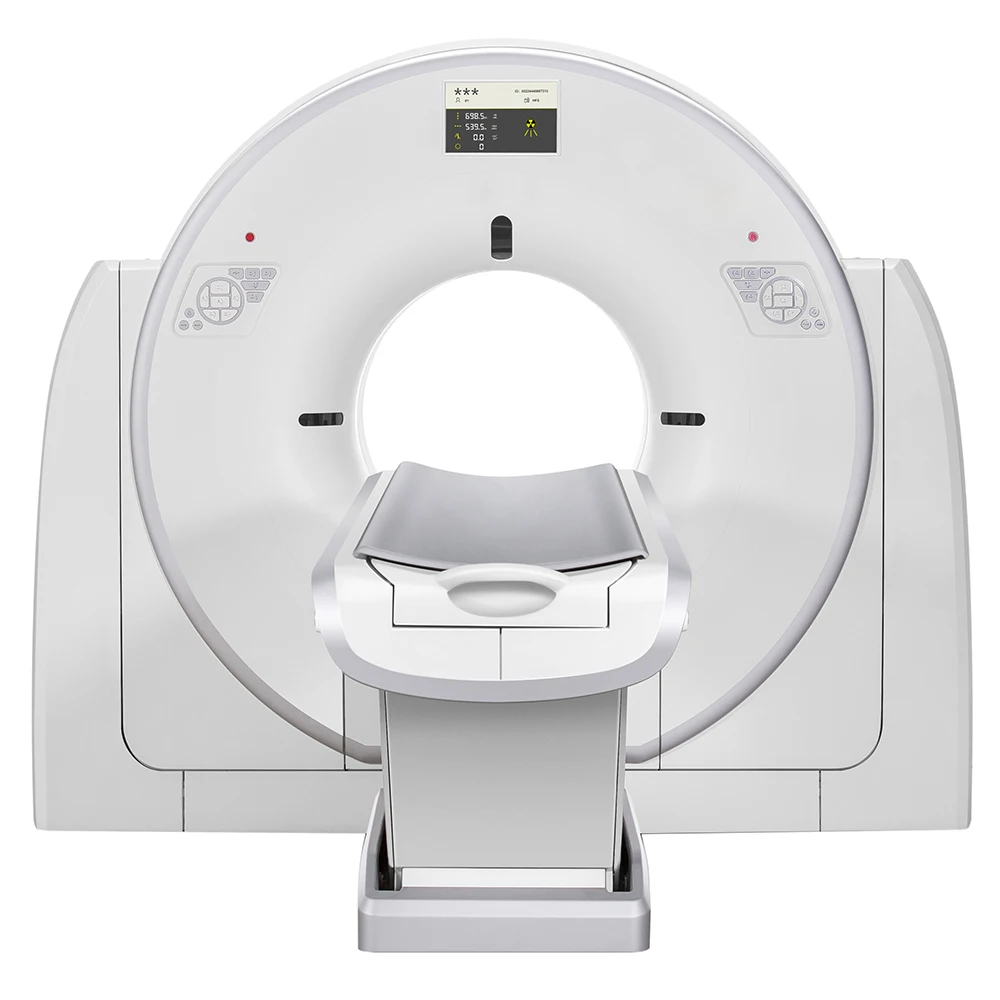

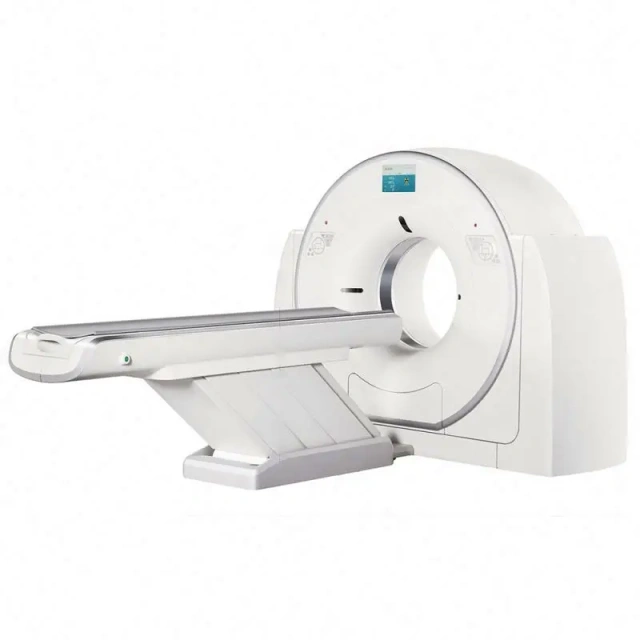

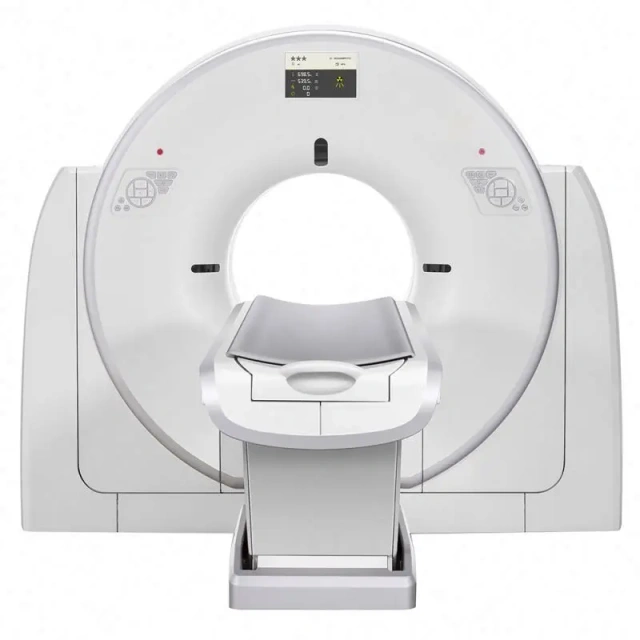

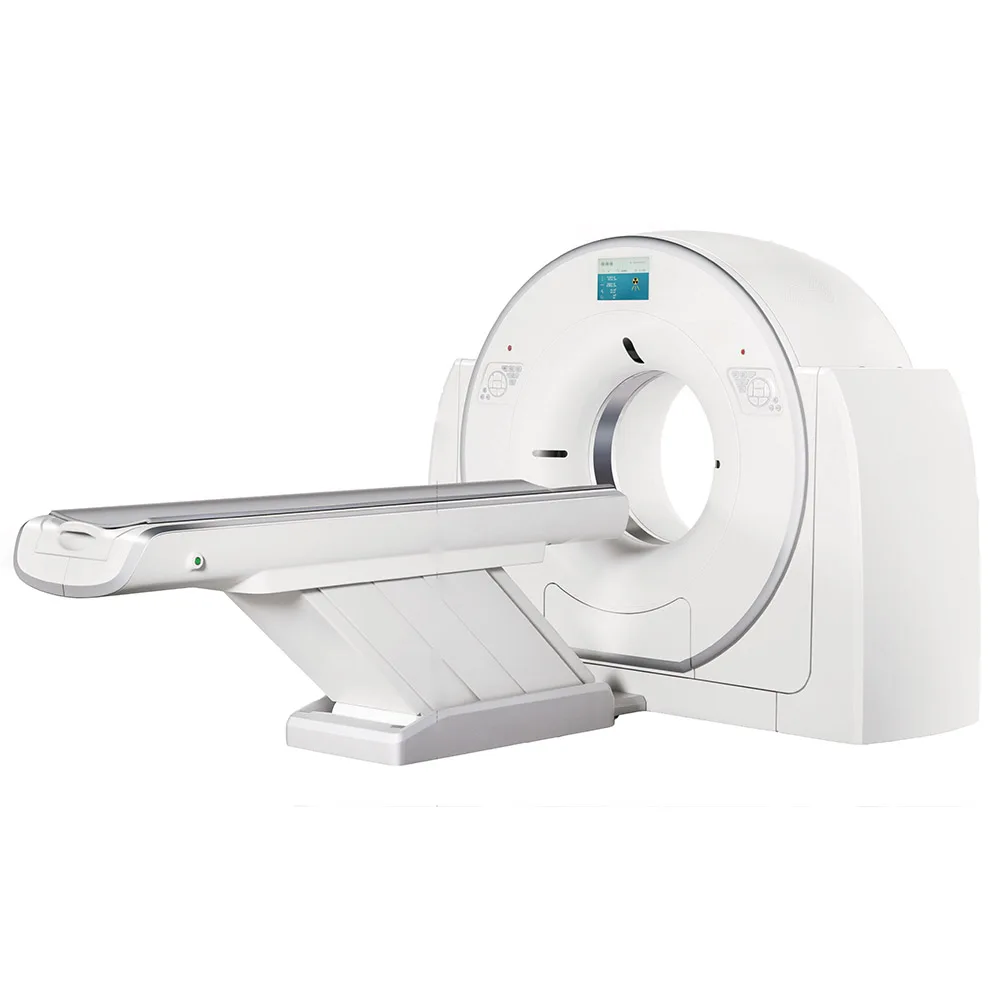

Hospital Computed CT scan machine 32-slice System Dual-slice For whole-body tomography
|
||
|
Slip ring
|
Low-voltage slip ring
|
|
|
Aperture size
|
715mm
|
|
|
Tiltangulation range
|
±30°
|
|
|
Laser Positioning System
|
Provided, provide sagittal, coronal and internal and external cross-sectional positioning lines
|
|
|
Scanning Collimation
|
2x1.1mm; 8x0.55mm; 16x0.55mm; 16x1.1mm
|
|
|
Sampling rate
|
1800view/cycle
|
|
|
Min scan time (s/360°)
|
0.72s
|
|
|
Max FOV
|
500mm
|
|
|
Data transmission mode
|
Digital transmission
|
|
|
Cooling-down method
|
Air cooling heat dissipation
|
|
|
Detector type
|
GOS ceramic solid detector
|
|
|
Detector number
|
888x24
|
|
|
Detector Row
|
24
|
|
|
Detector channel per row
|
888
|
|
|
Detector thickness per row
|
0.55mm
|
|
|
X-ray System
|
||
|
*3.1 Focal Point
|
Bifocus
|
|
|
3.2 Focal Spot Size
|
0.7mmx0.8mm; 1.2mmx1.4mm
|
|
|
*3.3 Heat Storage Capacity
|
3.5 MHu
|
|
|
3.4 Max Anode Cooling Rate
|
8750W (12250 HU/sec)
|
|
|
3.5 Tube Life
|
100000 second exposure
|
|
|
3.6 Max Output of Tube Voltage
|
140kV
|
|
|
*3.7 Min Output of Tube Voltage
|
60kV
|
|
|
3.8 Output Voltage
|
60kV, 70kV, 80kV, 100kV, 120kV, 140kV
|
|
|
3.9 Max Output of Tube Current
|
350mA
|
|
|
*3.10 Min Output of Tube Current
|
10mA
|
|
|
*3.11 Max Power
|
42kW
|
|
|
3.12 Max Continuous Exposure Time
|
100s
|
|
|
4 Scanner Table
|
||
|
4.1 Horizontal Movement Range
|
0 ~ 1725mm
|
|
|
4.2 Max Scan Range
|
1650mm
|
|
|
*4.3 Max Horizontal Speed Range
|
300mm/s
|
|
|
4.4 Repetitive Positioning Accuracy
|
±0.25mm
|
|
|
*4.7 Max Load Capacity
|
205kg
|
|
|
Power Supply
|
||
|
Parameter
|
Condition
|
|
|
Voltage
|
380VAC±10%;
|
|
|
Frequency
|
50Hz±1Hz;
|
|
|
Power
|
≥55KVA;
|
|
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
