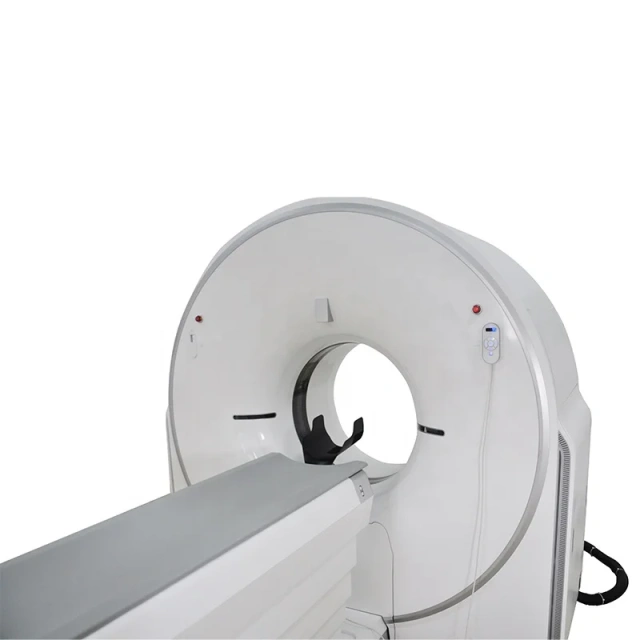

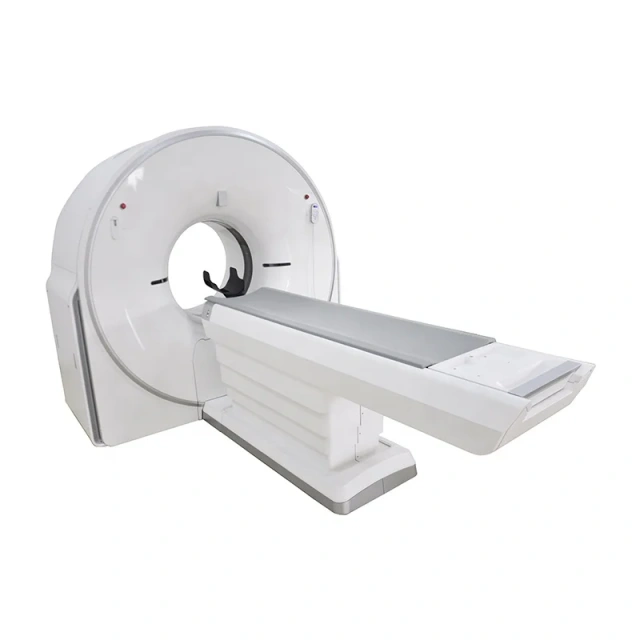

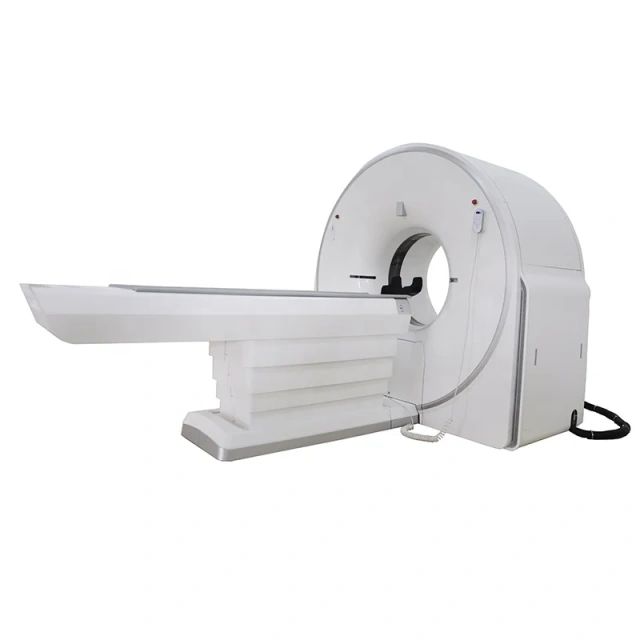

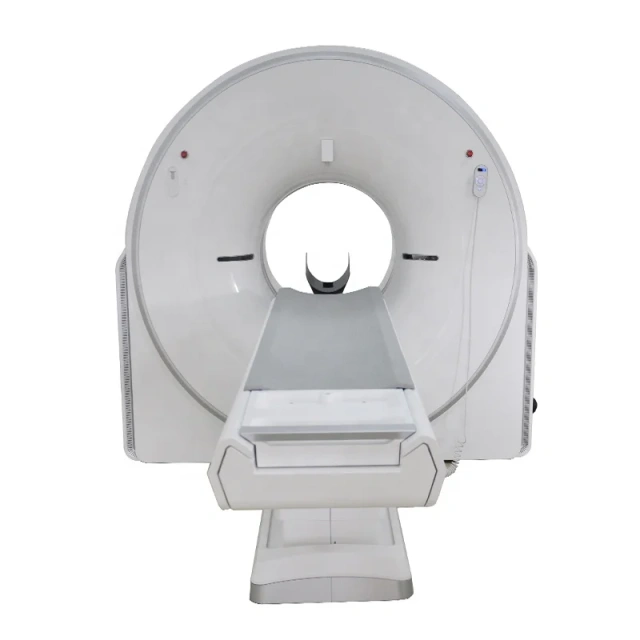

Fatali-Med 32-Slice Diagnostic CT Scanner

No.FTLCT-32D

The X-ray source assembly rotates 360°, and the maximum number of scan layers that can be obtained in a single axial scan is 32.

Maximum scanning range: 1200mmPitch coefficient: 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75Scan mode: positioning scan, tomographic scan, spiral scan, enhanced scan, perfusion scanSoftware functionPatient file managementPatient registrationScan functionreconstruction2D image browsing and processing3D image browsing and processingFilm printingData management function

GET A QUOTE

Description
Get a quote

Fatali-Med 32-Slice Diagnostic CT Scanner – Advanced 2D/3D Imaging System

The Fatali-Med 32-slice CT scanner is engineered for high-throughput diagnostic environments. Featuring a 360° rotating X-ray source and a 1200mm scan range, it supports versatile scanning modes including spiral, enhanced, and perfusion scans. Equipped with advanced software for 2D/3D reconstruction, it delivers superior clarity for complex bone, chest, and abdominal diagnostics. Designed for hospitals and trauma centers requiring fast, high-resolution imaging.

Products Description

CT / X-ray Computed Tomography Equipment

Parameters
Part name	Model	Specifications
Scanning frame	SM100	Scanning frame aperture: 700mm±10mm Scanning frame rotation speed: 0.75s, 1.0s, 1.5s, 2.0s Scanning field of view: 430mm Type of Slip ring: contact slip ring
High voltage generator	CT70PN32X5610	Tube voltage setting: 70~140kV Tube current range: 10~300mA Nominal output power: 32kW
Collimator	CMT-003	Half value layer：≥4.6mmAl Equivalent aluminum equivalent thickness：2.3mmAl
X-ray tube sleeve	B-240H	Nominal tube voltage: 140kV Nominal anode input power: 29kW/48kW Maximum continuous heat dissipation of anode: 3.5kW Focus size: 0.7mm ×0.8mm 1.2mm ×1.4mm Anode rotation speed: 60Hz/180Hz Diameter of anode target surface (mm): 140mm Target angle: 7° Anode type: rotating anode Bearing type: mechanical bearing Quantity (pcs): 1 Fly focus (x to z offset): none The longest spiral scanning time: 100s Anode heat capacity:3.5MHU
X-ray tube	GS-30722
Detector	DET-003	Scintillation crystal material: GOS crystal Pixel matrix: 704×16 Number of detectors: 11 Coverage (projected to the center of rotation): 430mm Pixel size (projected to the center of rotation) 1.25mm × 1.25mm Scanning angle: 0°/90° Scanning field of view: 430mm Axial scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 10.0 mm ± 1.0 mm; Spiral scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 3.75 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 7.50 mm ± 1.0 mm, 10.0 mm ± 1.0 mm; Collimation combination: 16×1.25, 4×1.25;
Diagnostic bed	ZC300	Z-axis positioning accuracy (mm): ≤±1mm Speed: 0~150mm/s Vertical lifting range: ≥440mm Maximum load: 205kg
Laser	M63AXSAXX-XX	Category: 2 types Positioning accuracy: ±1mm Wavelength: 600~700nm Maximum output power: <1mW
Console CZ100	KH100	Control box: Exposure control Bed motion control Intercom function
		/	Computer The minimum configuration requirements are as follows CPU performance: the main frequency is not less than 2 GHz, the number of cores is not less than 2 cores Memory size: no less than 8GB Image storage capacity: no less than 850GB
		/	Monitor The minimum configuration requirements are as follows Screen resolution: 1920×1200 SXGA Number of displays size: 1*24 inches Type: LCD, color Contrast ratio: 1000:1 Preview
Computer image processing software	ScintVue	Release version: 1.0

Company Profile

Our Advantages

Transportation

FAQ

1. What is the MOQ?Re: Any quantity is available.
2.Where to use?Re: Clinic,hospital,community inspection,battlefield,university,laboratory,government tender,distributors...
3.Can you provide other power?Re: Yes,we have different power for your selection.
4.Do you have floor-mounted or mobile for selectionsRe: Yes.we have both floor mounted and mobile.
5.What is your production time?Re: Our production time is normally around 15 days for 1~5 sets quantity.

Fatali Medical Technology Foshan Co.,Ltd is a 23 years professional experience medical equipment supplier.
