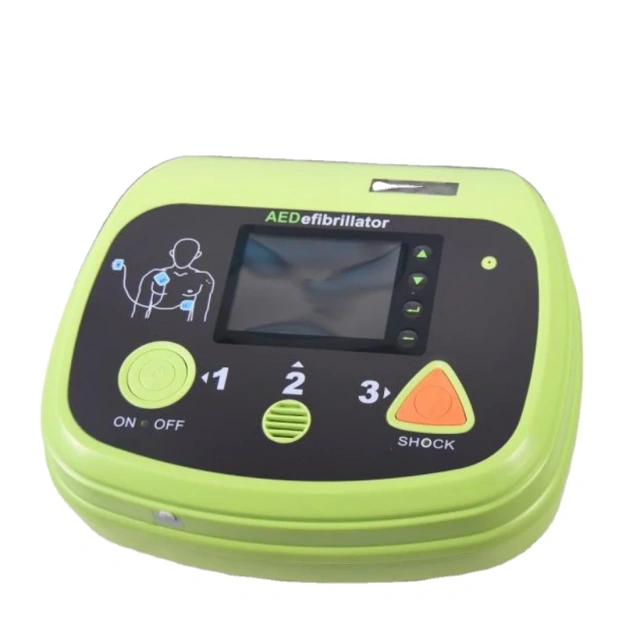

Medical First Aid Automated External Defibrillator Portable AED For Hospital

Feature:

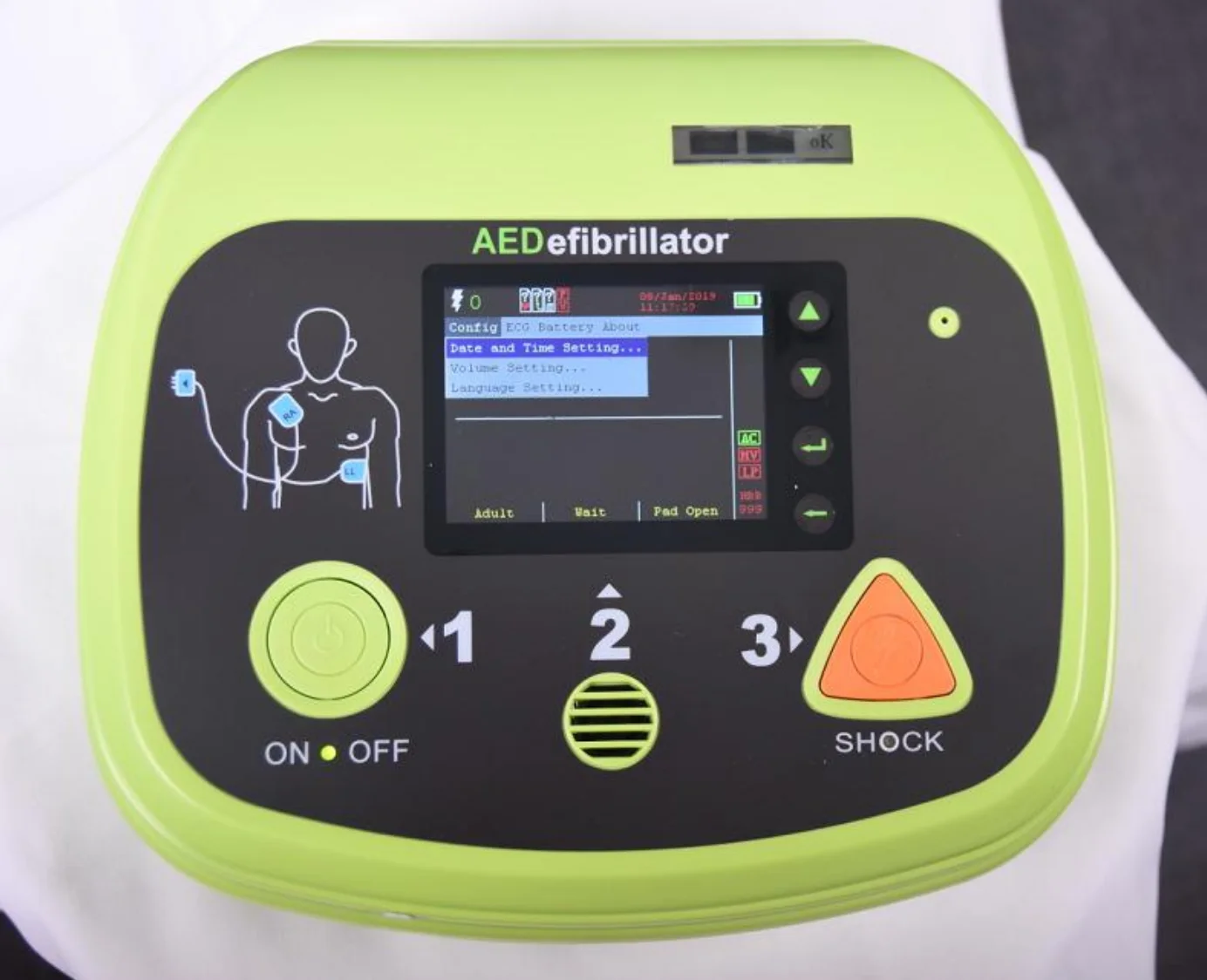

Color Screen size: 3.5”
Automatic self-testing
Biphasic energy output
CPR metronome
CPR Coaching (Optional)
Adult and Pediatric defibrillation
Extensive voice and visual prompts for the operator

Specification:

Output: Biphasic Truncated exponential
Energy Sequence: Adult: 150J,150J, 200J:Pediatric: 50J, 50J, 85J(ajustable)
Charge Time: 8 sec. to 150J 4 sec. to 50J/100J
10 sec. to 200 J (New battery)
Analysis Time: 9 sec.
The maximum time from the initiation of rhythm analy-sis to readiness for discharge with a new battery: Less than 20 seconds
The maximum time from the initiation of rhythm analy-sis to readiness for discharge after 6 shocks: Less than 25 seconds
The maximum time from initially switching power on to readiness for discharge: Less than 30 seconds
Audible Prompts: 19 audible prompts
Visual Prompts: LED prompts;Automatic Self-test
Controls: Six Buttons: ON/OFF, Shock and four software
configurable buttons
Output Energy Accuracy: ±1 5% into any impedance from 25 to 1752
Output disabled when the patient impedance is outside limits: 200 to 200Q

Battery:

Non-rechargeable: CR123A-5x2
Capacity: 15V d.c.2.8Ah; 100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25°C+15°C): 5 years standby (after installation)

Physical:
Dimensions: 225x 200 x 85 mm
Weight: 2.0 kg
Operating Temperature: 0°C to 40°C
Operating Humidity: Relative humidity between 30% and 95% (non-condensing)
Storage Temperature (without battery): -20°C to 55%C
Storage Humidity (without battery): Up to 93% (non-condensing)

Fatali Medical’s Portable Defibrillator Machine for Hospital is a fully automated external AED designed for rapid cardiac response.
