Advanced Laptop Design: A powerful ultrasound machine laptop built on a PC platform with Windows 7 for enhanced performance and familiar operation.
High-Resolution Display: Features a 12" HD display with 1024×768 resolution for sharp and detailed imaging.
Lightweight & Portable: Weighs only 6 kg, making it one of the most portable solutions in its class.
Dual Probe Sockets: Equipped with two active probe connectors for efficient workflow and quick transducer changes.
Comprehensive Imaging Modes: Supports B, B/B, 4B, B/M, and PW (Pulsed Wave Doppler) modes.
Advanced Clinical Tools: Includes IMT automatic measurement and Tissue Harmonic Imaging (THI) for improved diagnostic accuracy.
Multilingual Interface: Supports 7 languages (Chinese, English, Russian, Spanish, Portuguese, French, German).

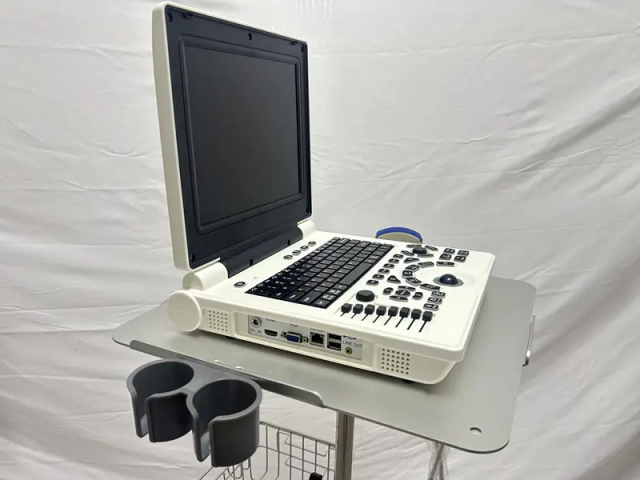

Modern Connectivity: Features HDMI, VGA, DICOM 3.0, 2 USB ports, and LINE OUT for versatile integration.
Long Battery Life: Built-in lithium battery provides up to 2 hours of standby for mobile examinations.
Multiple Carrying Options: Available with a laptop bag, aluminum case, or drawbar case for easy transport.

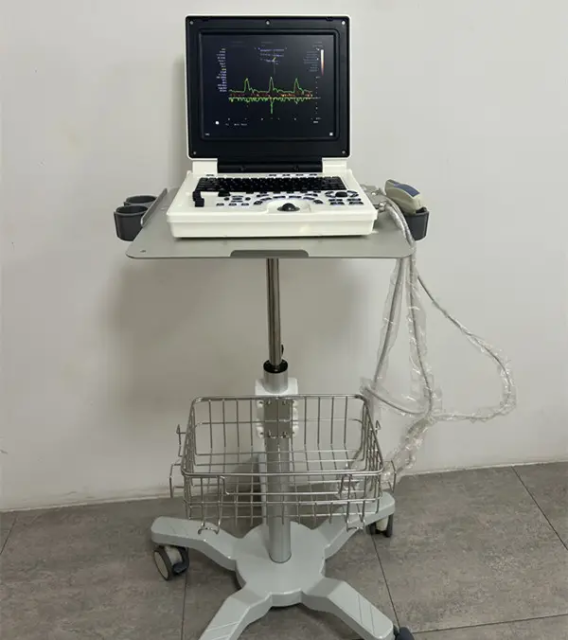

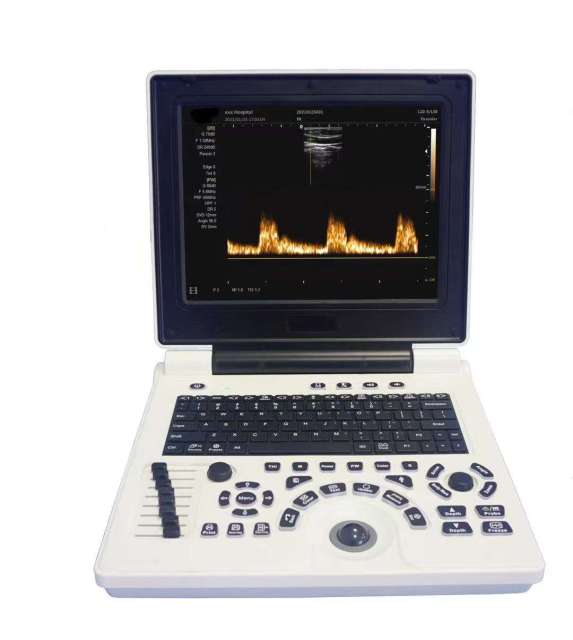

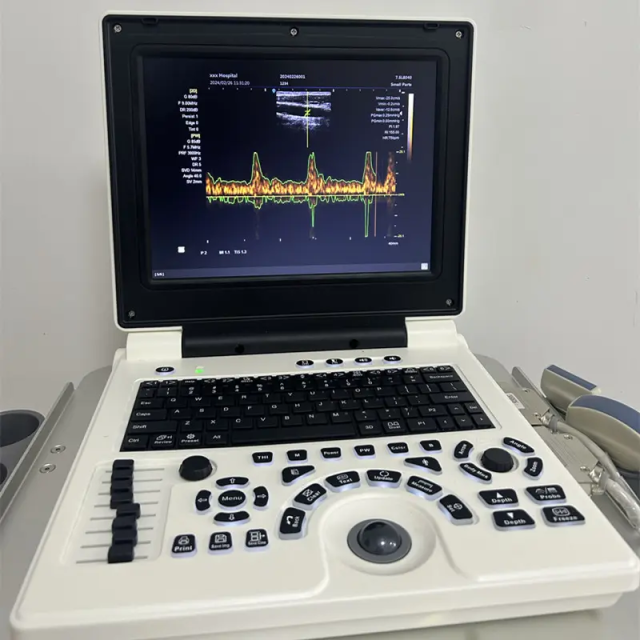

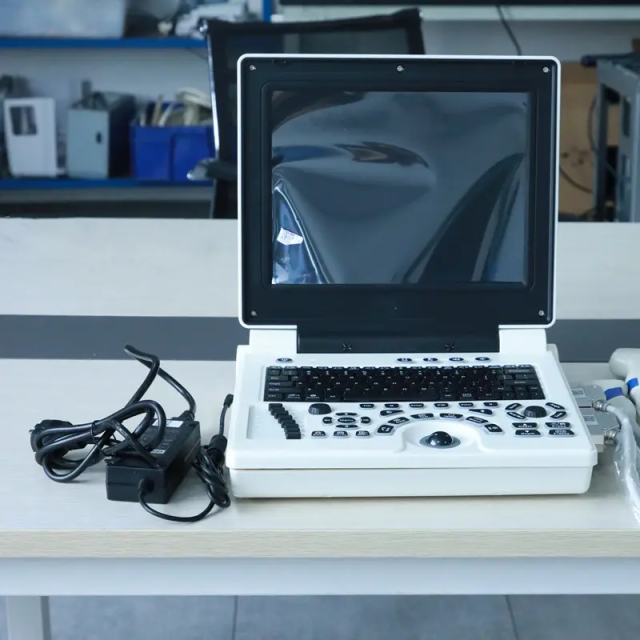

The FTL-P20 Notebook B/W Ultrasound Machine represents the next generation of portable diagnostic imaging. As a newly recommended model from GUO LONG, this ultrasound machine laptop combines the power of a PC-based system with the portability of a notebook, delivering exceptional grayscale imaging for a wide range of clinical applications.
Unlike traditional embedded systems, the FTL-P20 runs on a Windows 7 operating system with a 64GB SSD, providing a responsive user interface and ample storage for patient data. This ultrasound machine laptop is designed for professionals who require both mobility and advanced features, making it ideal for small clinics, rural healthcare facilities, veterinary practices, and emergency point-of-care settings. With support for PW mode, THI, and IMT measurements, it offers capabilities typically found in higher-tier cart-based systems.
Below is a detailed specification table for your reference:
| System Specifications | Details |
|---|---|
| Model | FTL-P20 |
| Type | Notebook B/W Ultrasound / Ultrasound Machine Laptop |
| Highlight | New Product Recommendation – GUO LONG |
| Display | 12" HD, Resolution: 1024×768 |
| System Architecture | PC Platform |
| Operating System | Windows 7 |
| Storage | 64GB SSD |
| Probe Sockets | 2 (supports two probes simultaneously) |
| Elements | 80 elements |
| Imaging Modes | B, B/B, 4B, B/M, PW |
| Special Features | THI (Tissue Harmonic Imaging), IMT automatic measurement |
| Report Function | Editable report pages |
| Languages Supported | 7 languages (Chinese, English, Russian, Spanish, Portuguese, French, German) |
| Connectivity | HDMI, VGA, DICOM 3.0, 2×USB, LINE OUT |
| Printer Support | Compatible with thermal, inkjet, and laser printers |
| Power Supply | Built-in lithium battery (2 hours standby) |
| Probe Options | Convex (3.5 MHz), Transvaginal (6.5 MHz), Linear (7.5 MHz), Micro Convex (3.5 MHz) |
| Optional Upgrades | 3D imaging capability |
| Carrying Options | Laptop bag, Aluminum case, Drawbar case |
| Packaging Dimensions | 470mm × 440mm × 250mm (Carton/Aluminum/Drawbar case) |
| Laptop Bag Dimensions | 480mm × 440mm × 315mm |
| Weight | 6 kg |
