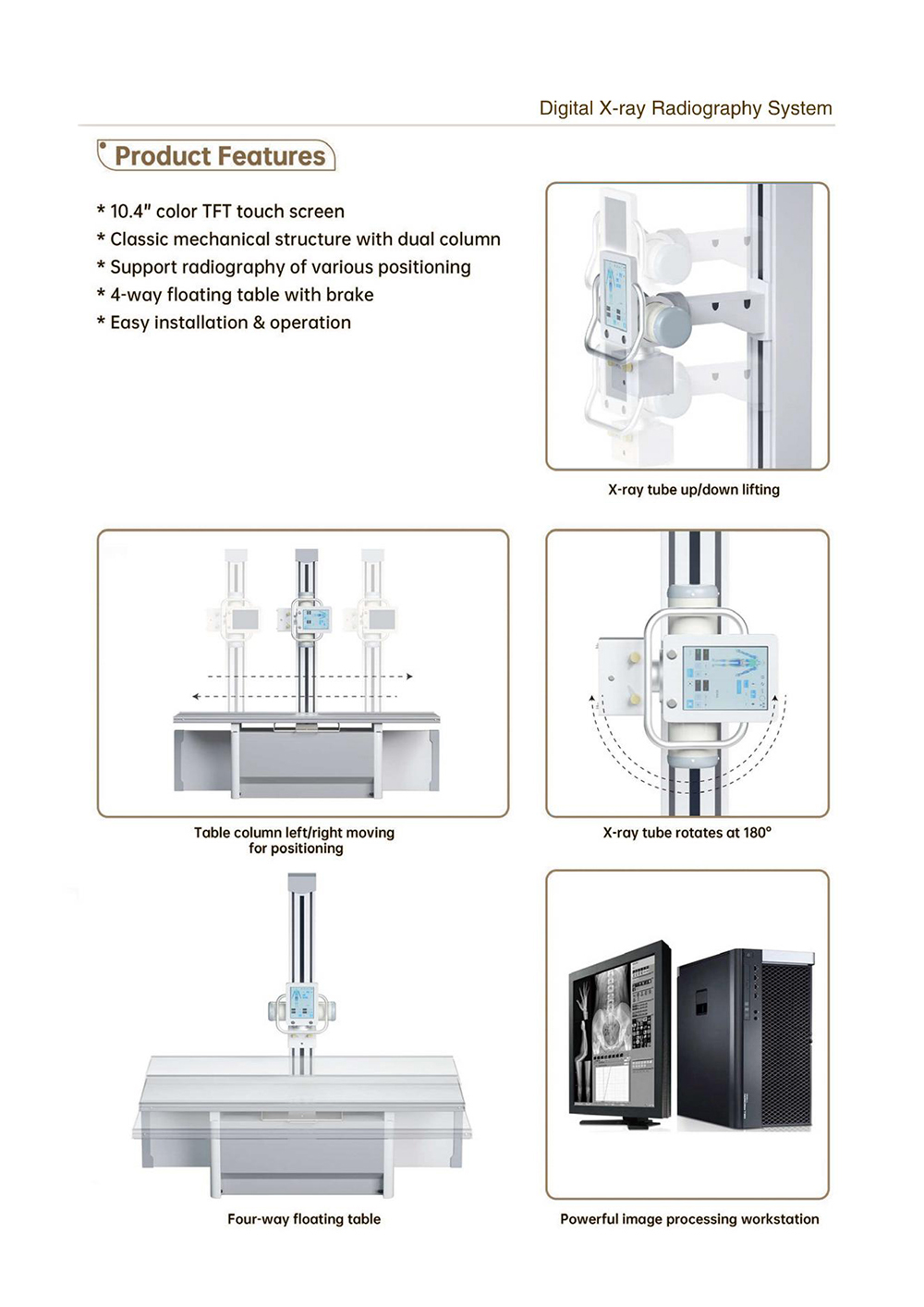

10.4" color TFT touch screen
Classic mechanical structure with dual column

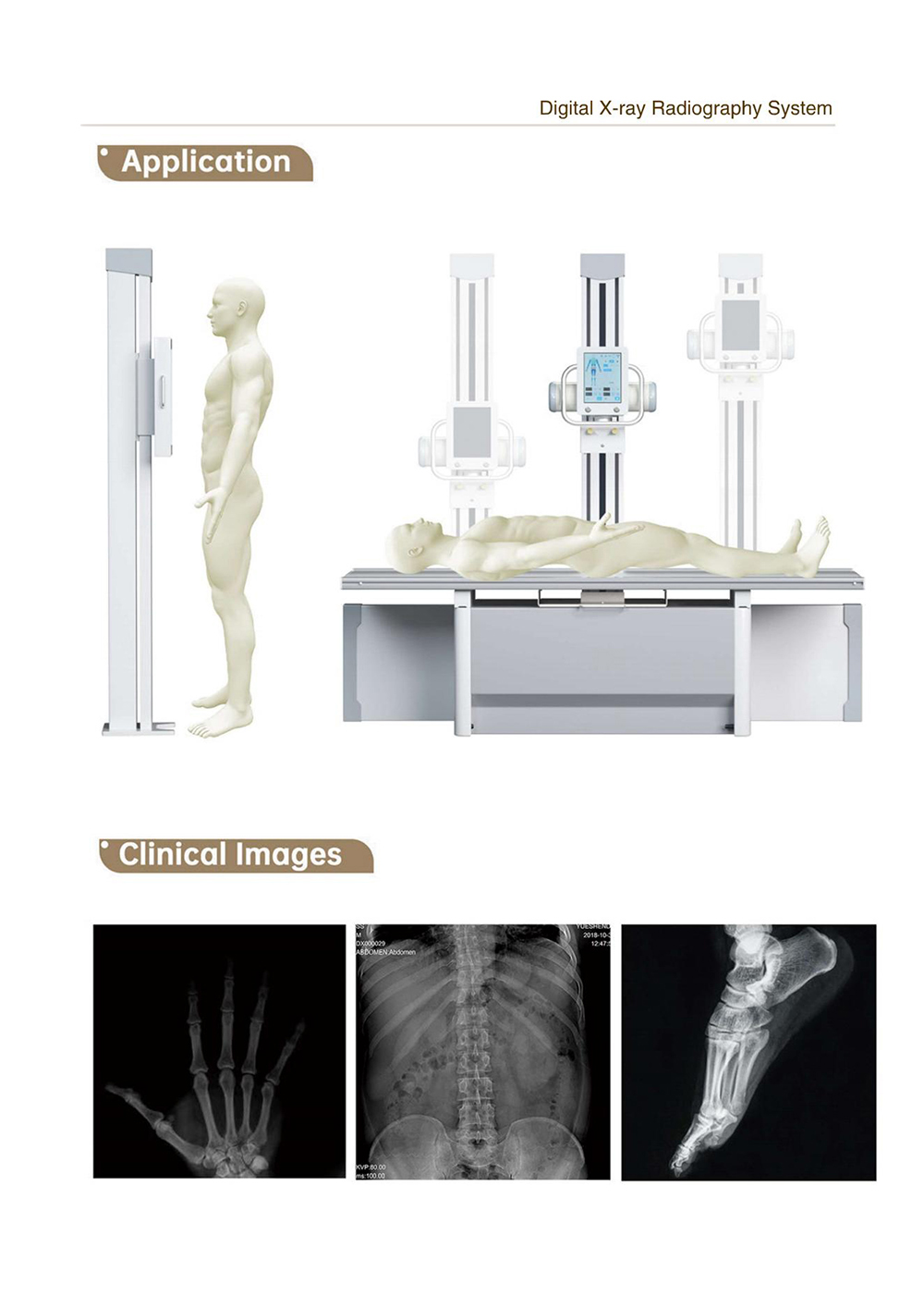

Support radiography of various positioning
4-way floating table with brake
Easy installation & operation
*Classic & modern design, one bedside operation, eliminating the need for ground rail installation.
*Integrated design, small footprint, low requirements for installation, and computer room.
*Infrared induction, and permanent magnet circuit design, effectively reduce noise and prevent mechanical failures caused by sudden power outages.
*32KW/50KW/65KW can be produced according to customers' needs.
*Linked with the high-voltage cable, ensure smooth operation.
*A large touch control screen enables inspecting the operations immediately in real time.
| X-ray bed | |
| Bed body size | Length2090 * Width800 * Height688mm |
| The Movement distance of bed surface broad toward the left or right direction | ±430mm |
| The Movement distance of bed surface broad toward the front or back direction | ±107mm |

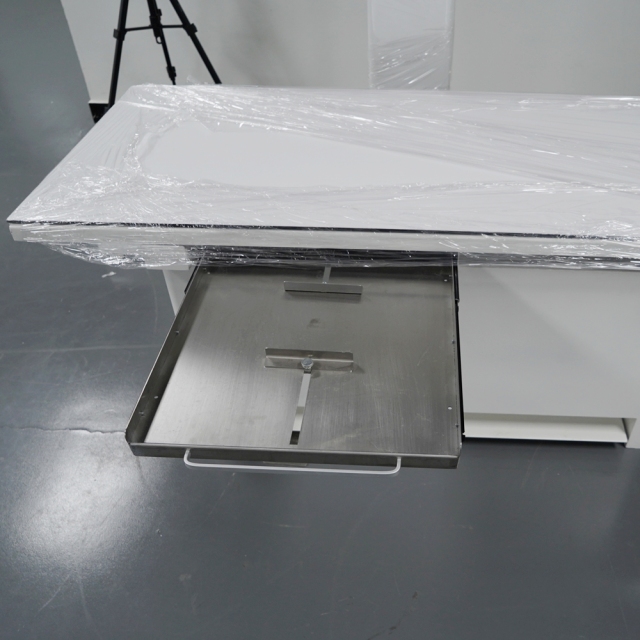

| The Left and right movement distance of the tray under the bed | 460mm |
| Pillar above the bed | |
| X-ray tube pillar size | Height2130*230*150mm |
| The Movement distance toward the left or right direction | 1380mm |
| X-ray tube rack arm | |
| Length | |
| The highest distance from the ground | 1700mm |
| The lowest distance from the ground | 460mm |
| The movement distance from up and down | 990mm |

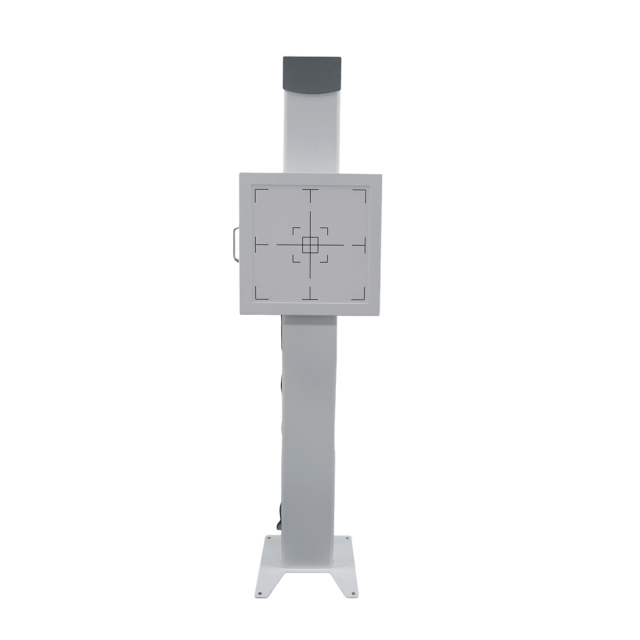

| Chest X-ray holder | |
| Holder size | Height 2060* Width 260* thickness 220mm |
| Chest X-ray box | width 535mm*540mm |
| The highest distance from centre position to the ground | 1610mm |
| The lowest distance from centre position to the ground | 575mm |
| The distance of up and down movement | 1035mm |

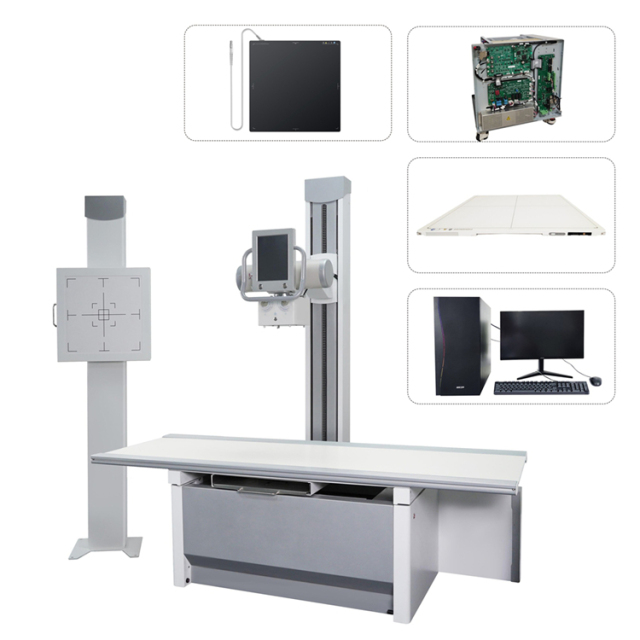

The FTLF50DR-B3 50 kW Fixed X-Ray Machine with DR System is a high-performance, fully digital radiography solution designed for modern medical diagnostic environments. Built with a powerful 50 kW high-frequency generator, advanced digital radiography detector, and robust floor-mounted structure, this system delivers exceptional image quality with stable performance, efficient workflow, and reliable clinical accuracy.
Equipped with an integrated DR (Digital Radiography) System, the FTLF50DR-B3 supports fast imaging, superior image resolution, and instant image acquisition. With intuitive controls and smart automatic exposure features, this X-Ray system enhances operational efficiency and simplifies radiographic imaging for healthcare professionals.
Whether used in general radiography, emergency departments, orthopedic clinics, or imaging centers, the FTLF50DR-B3 Digital X-Ray Machine offers consistent high-definition images with excellent diagnostic clarity, meeting the needs of diverse clinical applications.
Fatali Medical Technology Foshan Co.,Ltd is a 23 years professional experience medical equipment supplier.
