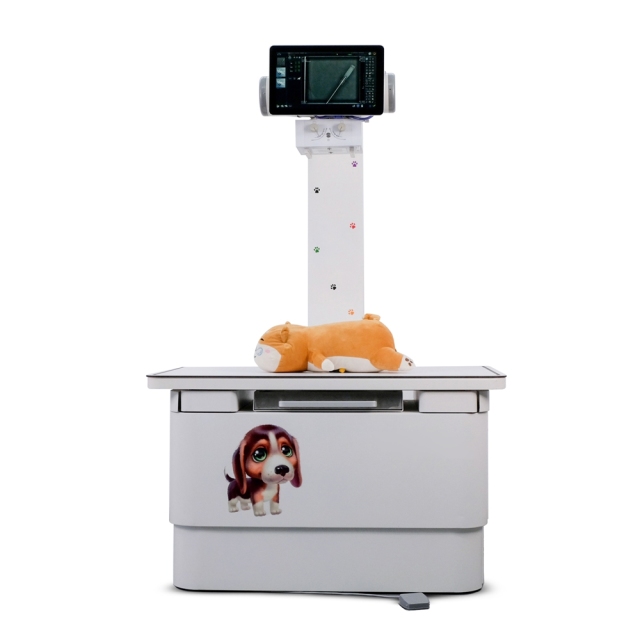

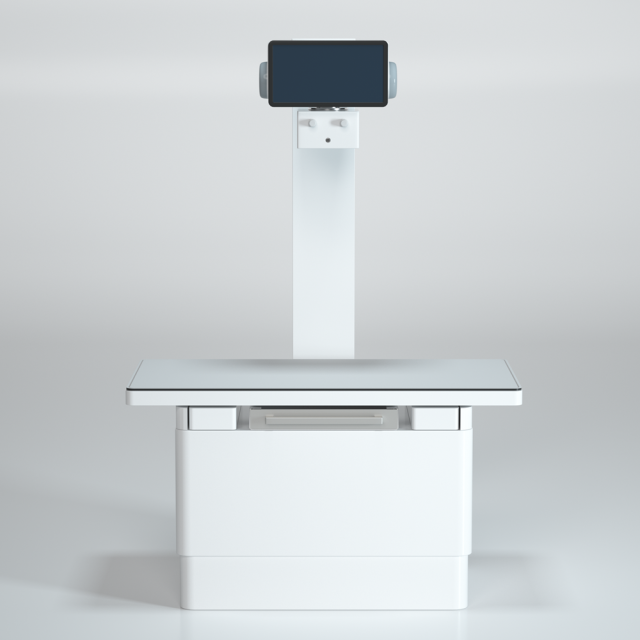

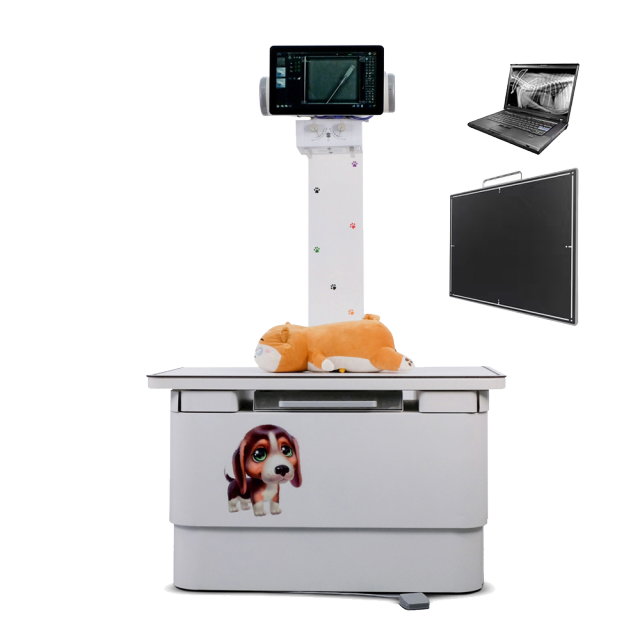

FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment

No.FTLF32V-B

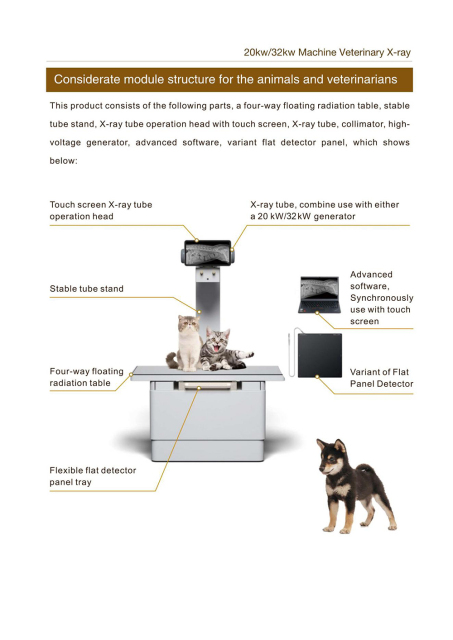

The power of generators 32KW, DR generating filming, the sliding column x-ray system comes complete with a four way floating top table with integral under surface cassette tray.

The counter balanced adjustable height tube column, supporting the dual focus rotating anode Toshiba tube, not only enables the focal film distance to be adjusted to any height above the table top, but slides in floor mounted runners beyond the full length of the table making standing lateral images easier than ever.

  • FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment,Fatali Medical equipment
  • FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment,Fatali Medical equipment
  • FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment,Fatali Medical equipment
  • FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment,Fatali Medical equipment
  • FTLF32V-B digital X-Ray Machine for Veterinary Use 32KW vet hospital xray equipment,Fatali Medical equipment
  • Description

  • Get a quote

*Accuracy - The machine provides clear and precise images, which enable veterinarians to make accurate diagnoses and treatment decisions.

*Fast Scan Time - The digital image acquisition and processing capabilities allow for a fast scan time, enabling veterinarians to examine more patients in less time.

*Cost-Effective - As a bulk piece of equipment, the 20KW veterinary X-ray machine saves costs that would otherwise be incurred when multiple smaller X-ray machines are purchased for different types of animals.

*Reduced Radiation Exposure - The machine's high-frequency generator and digital imaging technology significantly reduce the amount of radiation exposure an animal is exposed to during an X-ray examination.

Power voltage

1-phase 220VAC ±10%,50Hz,16A;3-phase 380VAC±10%

Maximum Working Frequency

≥30KHz

Nominal Electric Power

32kw(@100kv,200mA,100ms)

KV range

40-125KV

mA range

10-320mA

mAs range

0.1-400mAs

Photo form time

3ms-6300ms

X-ray tube



Working voltage

40KV-125KV

Maximum power (0.1 S)

Small focus 20 kw, Large focus 40 kW

Nominal value

Large focus 1.2,Small focus 0.6

Maximum heating filament characteristics

5.3A

Anode speed (50HZ)

2800rpm

Anode angle

12°

Inherent filtering

1.0mmAL/75kV

Anode Heat Content

110KJ(150KHU)

Tube component heat capacity

900KJ(1300KHU

Flat Panel Detectors



Detector Technology

a-Si

Scintillator

CsI

Image Size

43×43 cm

Pixel Matrix

3072×3072 (17×17 in)

Pixel Pitch

140 μm

A/D Conversion

16 bit

Minimum Detectable Dose

14 nGy

Maximum Linear Dose (RQA5)

110 μGy

Spatial Resolution

3.6 LP/mm

Data Interface

GigE /802.11ac

Power Dissipation

32 W

Adapter Input

AC 100-240V,50-60Hz

Dimensions

46×46×1.5 cm

Computer

Intel i5 processor

8 G memory

2 G independent graphics card

128 G solid state hard disk 1 TB mechanical hard disk

PCI-E and ethernet dual gigabit network interface

22.5 inch dell professional small dot display

Operating system: win10






Fatali Mledical Technology Foshan Co., Ltd is a leading manufacturer of medical equipment in China.Compounded with the R&D and sale of medical device,especially in the field of medical x-ray machine.We are not only manufacturer of medical equipment but also professional on providing one-stop solut-ion of hospital project, clinic project, Education University,laboratory, government tender as well asdistributors. Based on mutual trust & good service, our mission is to provide the most cost-effectivemedical equipment for hospitals and clinics around the world.
Fatali Medical Technology Foshan Co.,Ltd is a 21 years professional experience medical equipment supplier.
