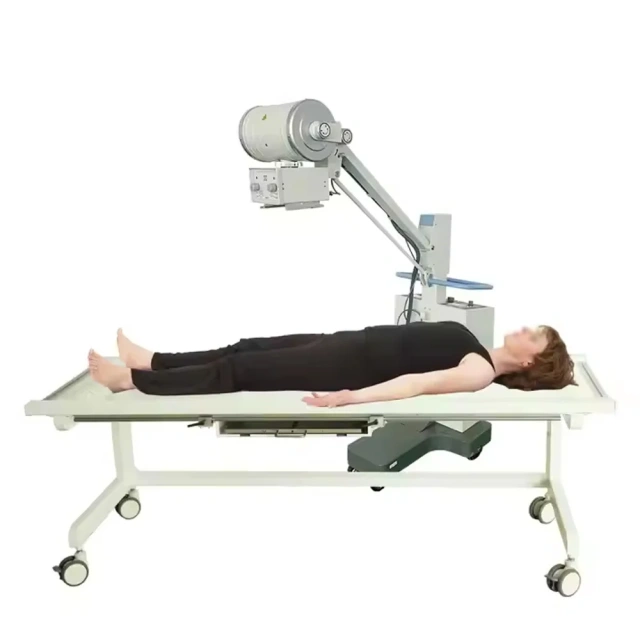

High Quality Wholesale FTLF-MB High Penetration Medical Use X-Ray Scanning System Digital X-Ray Machine
|
||
|
Technical Specification
|
||
|
Parameter
|
FTLF32
|
|
|
Max.kW
|
32KW
|
|
|
Power Supply
|
5OHZ. 60HZ wire diameter>4mm2, internal resistance-<0.50,32KW(220V B80V ovailable)
|
|
|
KV Range
|
40-125kV
|
|
|
mA
|
10~400
|
|
|
mAS
|
0.1~320
|
|
|
KV
|
40-125kV, stepping by 1kV
|
|
|
Exposure Time
|
0.001-10s adjustable: stepping by 1ms
|
|
|
±20%@<10ms
|
||
|

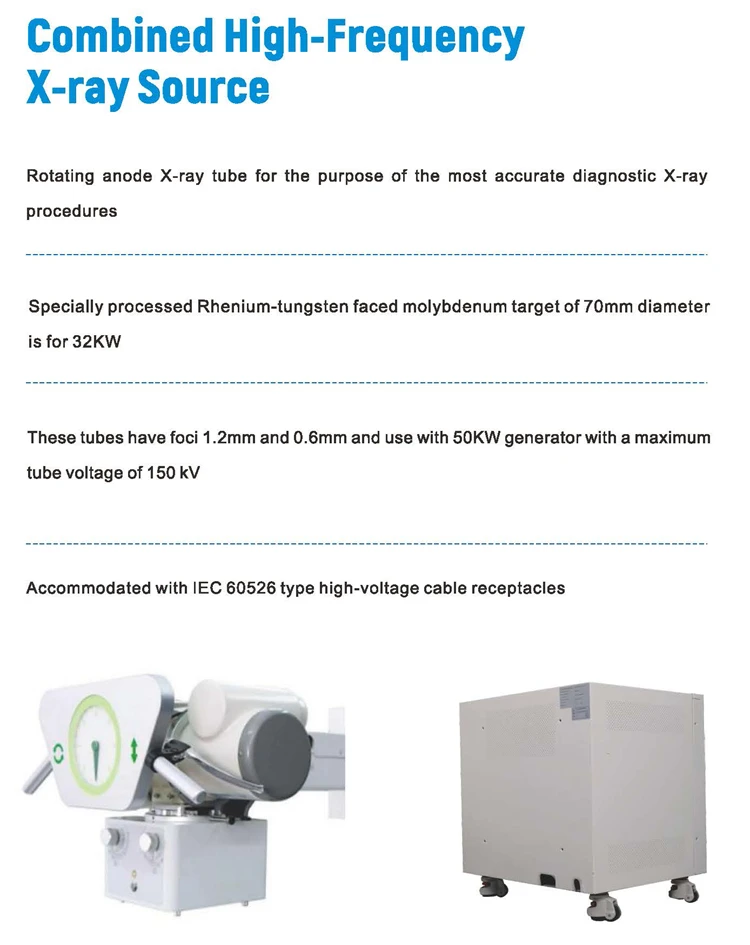

Focus
|
Dual focus: 1.0*1.0mm/2.0*2.0mm
|
|
|

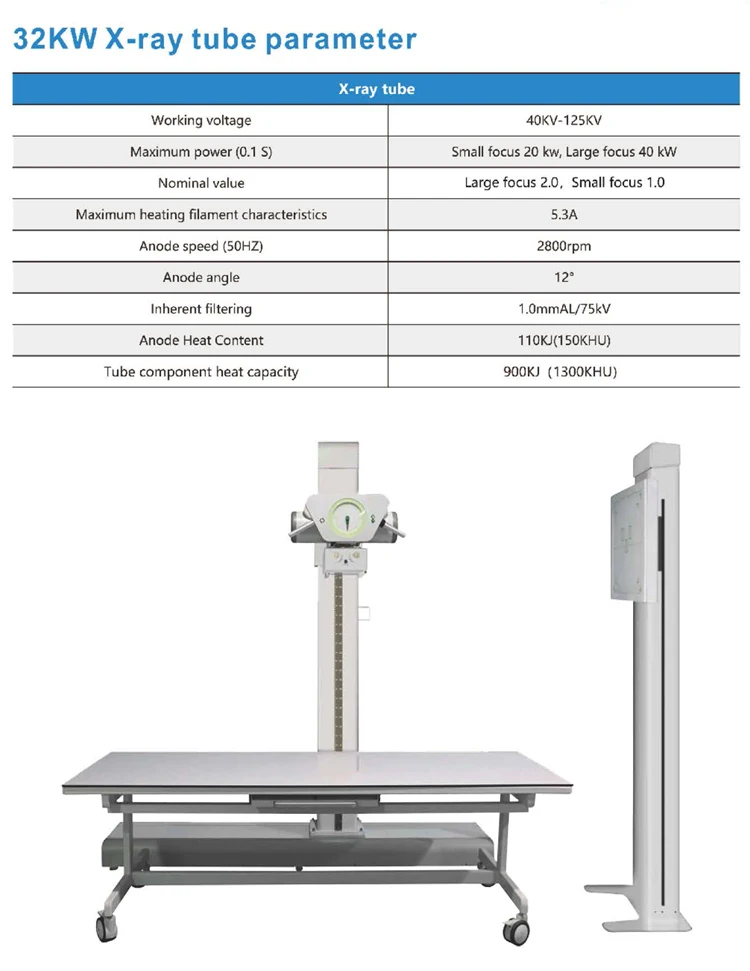

Rotating Speed & Heat Capacity
|
2800prm/130OKHU
|
|
|
±(10%+0.2mAs)@≤5ms
|
||
|
Inverter Frequency
|
50KHZ-220KHZ
|
|
|

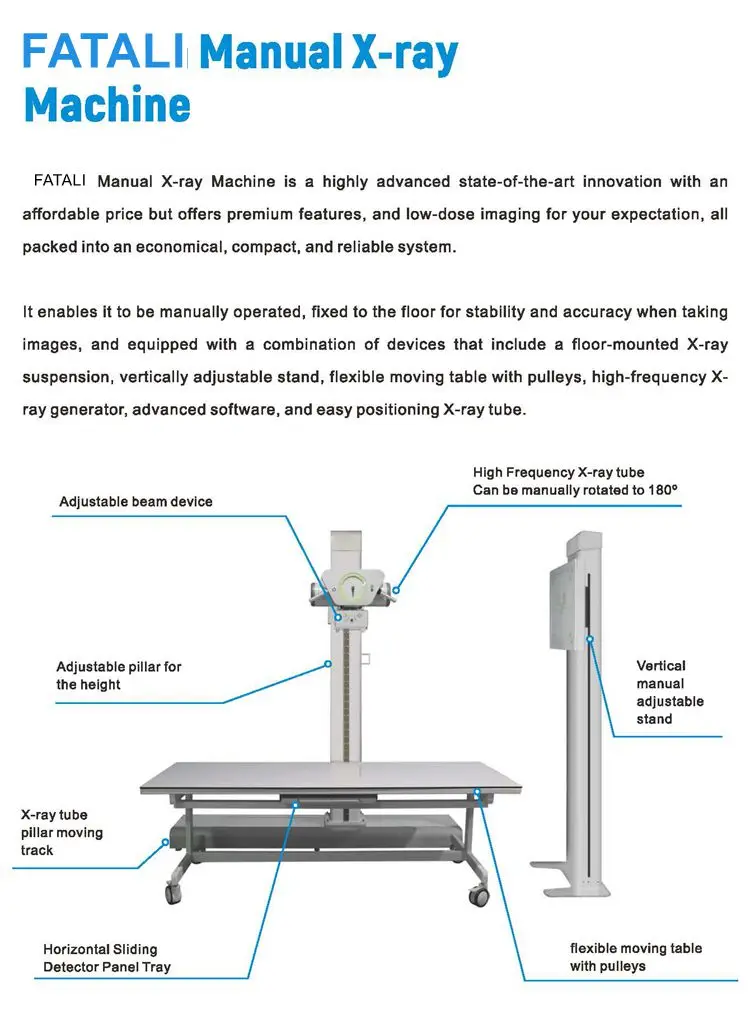

Tube Movement
|
Up & down lift, left & right rotation
|
|
|
±(5%+1ms)@≤5ms
|
||
|
Column
|
Left & right movable
|
|
|

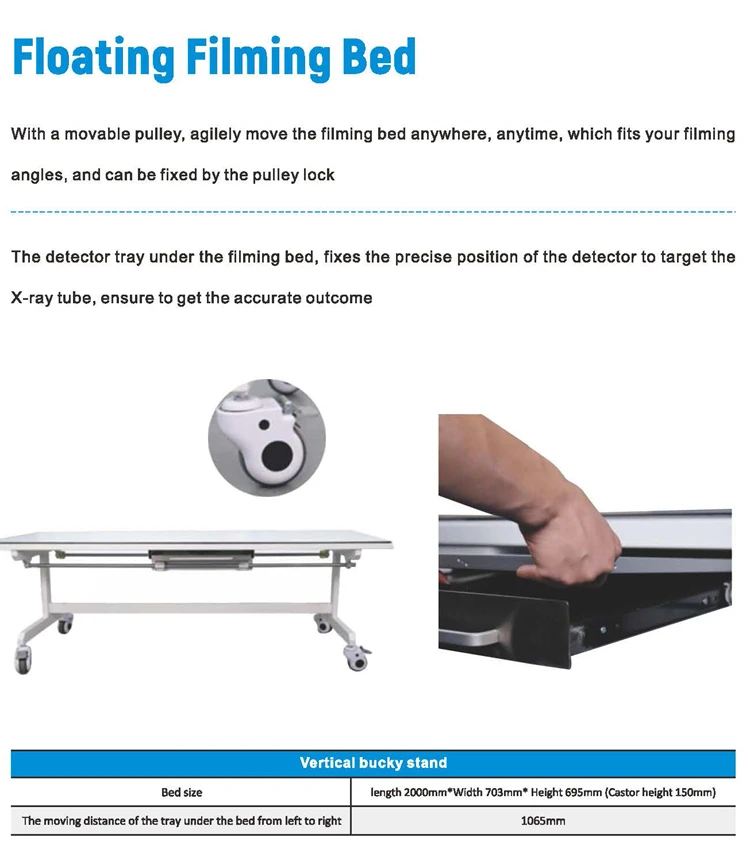

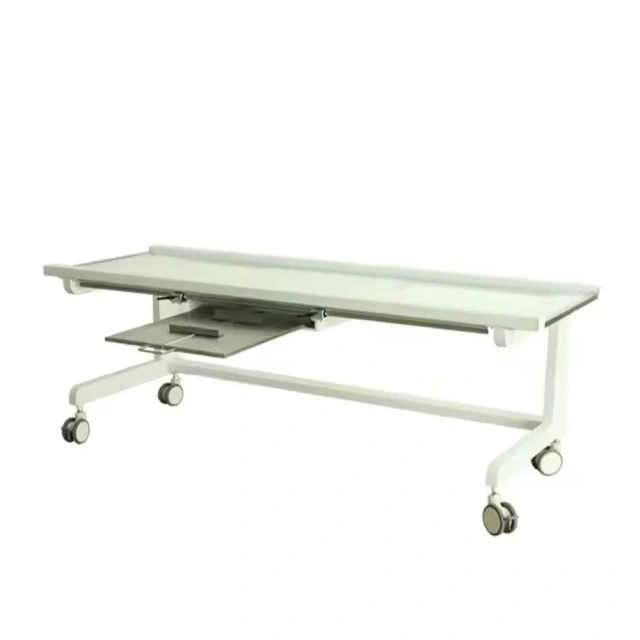

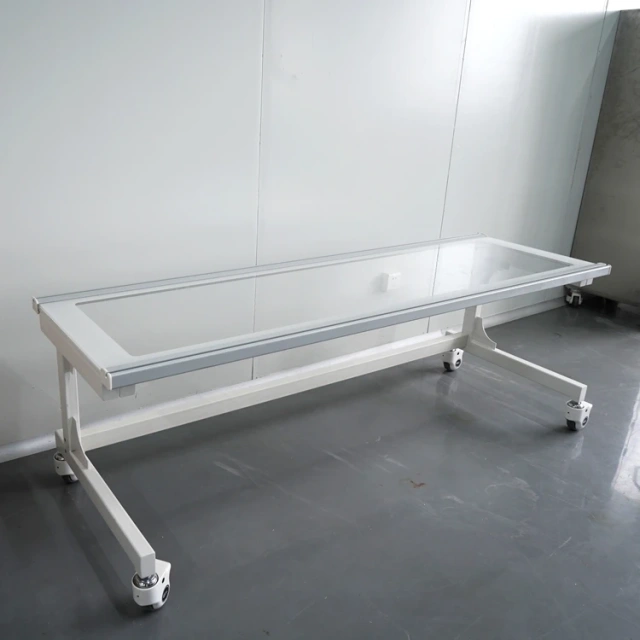

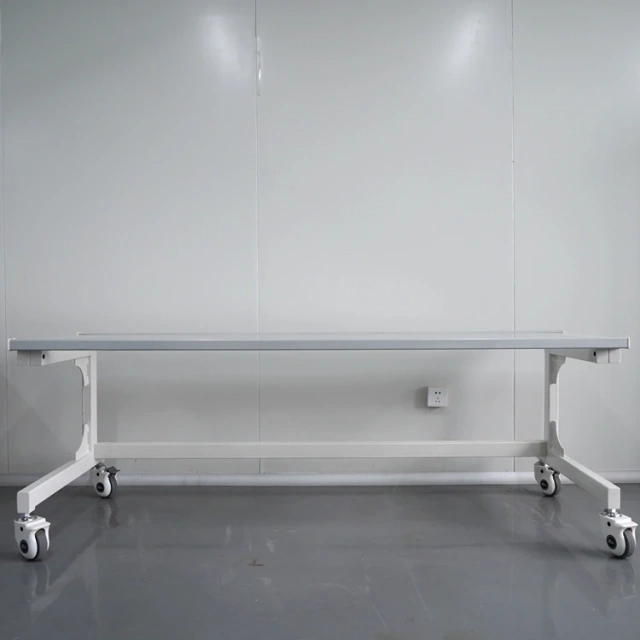

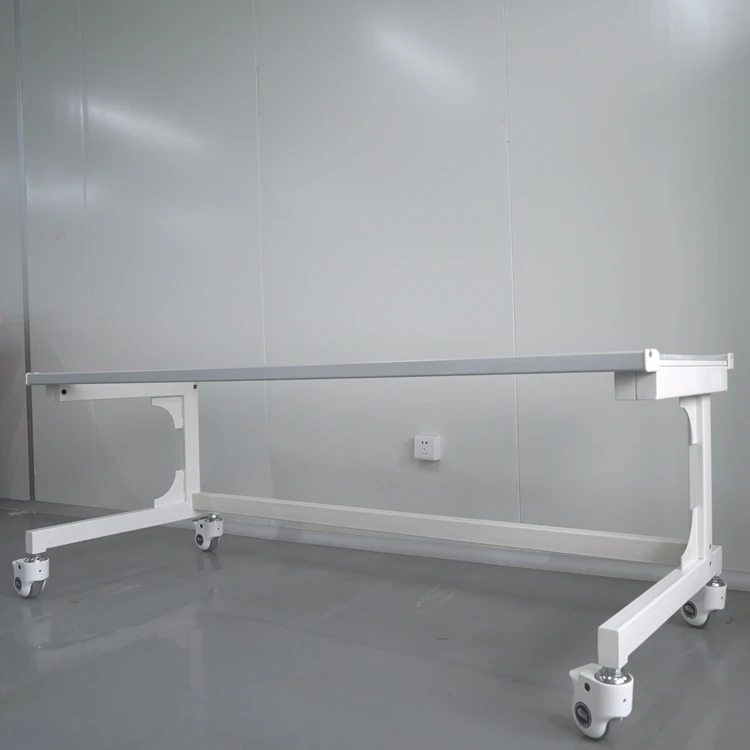

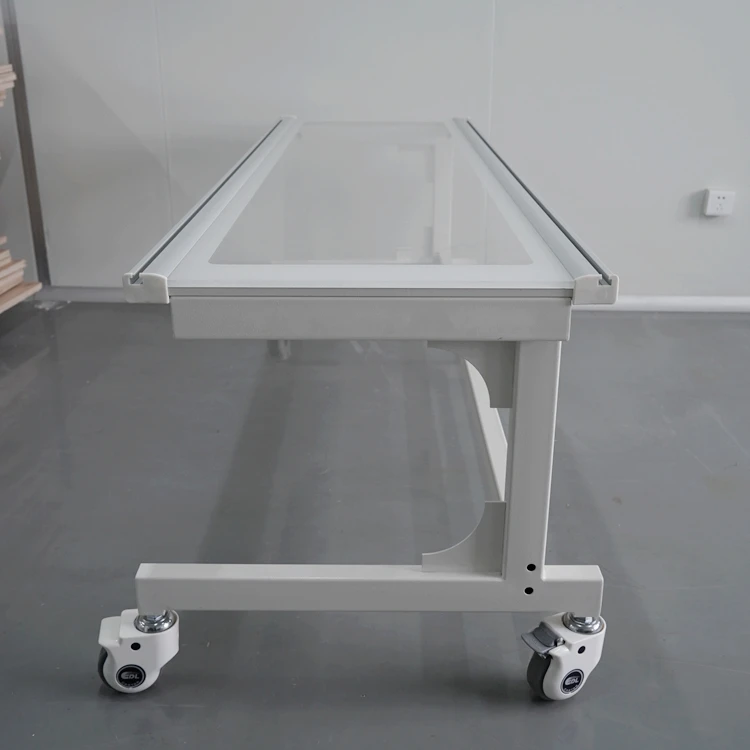

Radiography Table
|
Four-way floating
|
|
|
Flot Panel Detector
|
Amorphous silicon cesium iodide
|
|
|
Detector Size
|
17*17 inch
|
|
|
Pixel Resolution
|
3072*3072
|
|
|
Pixel Pitch
|
139um
|
|
|
A/D Conversion
|
16bits
|
|
|
Spatial Resolution
|
3.6lp/mm
|
|
|
Size
|
460*460*15mm
|
|
|
Interface
|
Wired (Wireless is optional)
|
|
|

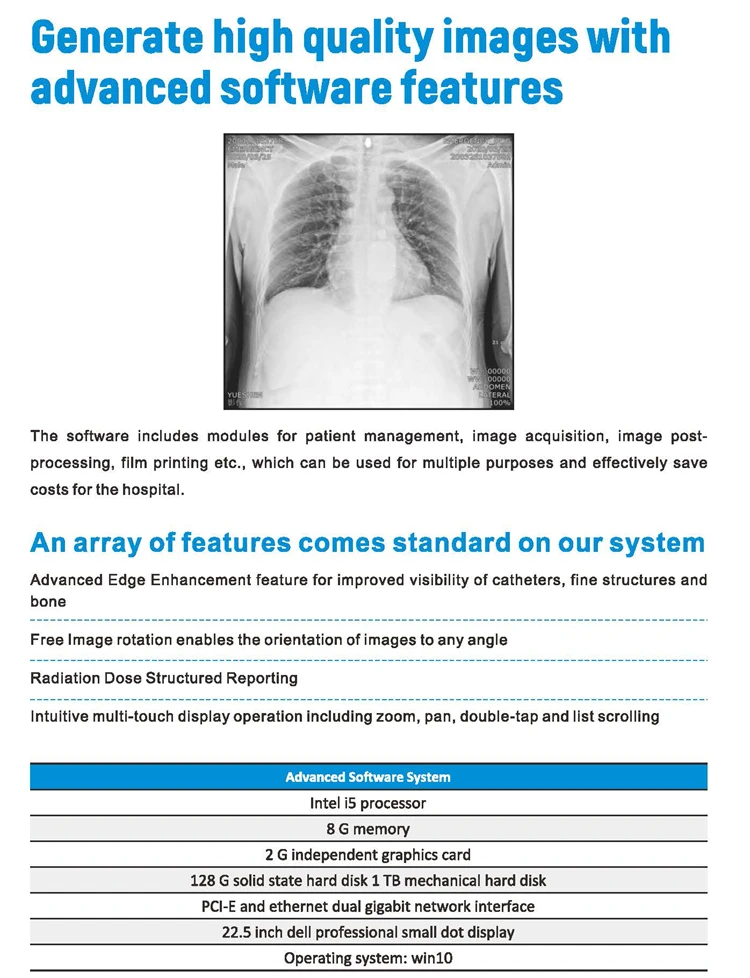

Software
|
Professional medical software with multi-anguages available
|
|
|
Workstation
|
Intel i5 CPU, 8G memory. 2G card,128G SSD, PCFE, R232,22.5 inch display Other options are available upon request
|
|
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
