It is an electrical and optical high-tech diagnosis system merging computer technology, optics, imaging study, ergonomics principles and colposcopy, so that it can have more accurate evaluation on the border sector where we are not able to see by our naked eyes and bring more comprehensive solution to diagnosis and treatment of diseases.
1.Applicable Range
1) Vaginal exfoliative cytology smear examination is more than three Pap levels.
2) Cytological examination is negative, but the naked eye observation has the suspicion of cancer
3) Long-term treatment in accordance with cervicitis, but the effects are not good.
4) The minor structural form of lesions is difficult to determine by the observation with naked eye.
5) The disease site and its spread part that can only be determined under the electric colposcopy before cervical cancer surgery
2.Apparatus Features
1) Specialized design, simple operation, and more humanity
2) Realization of the quantitative control on the detection process and image analysis
3) Electric green filter function based on hardware control
4) Realization of the statistical analysis of inspection data
5) Advanced network application technology
3.Technical Parameter
1) Camera Sony Exview HAD Camera, Supporting RS232 illumination
2) Lens resolution:1/4 "Super HAD color CCD,800,000pixels
3) Lens horizon resolution :480 lines or more
4) Camera Video Output Interface :S-video, Video, PAL format
5) Camera signal to noise ratio: 52 db
6) Lens focusing distance: standard 200 ~ 500mm, support 150 ~ 550mm
7) 18 times optical zoom lens, digital zoom 12 times
8) Magnification: 216 times
9) Field of view: Φ = 2.5 ~ 320mm
10) Camera self-balancing: internal AWB metering mode

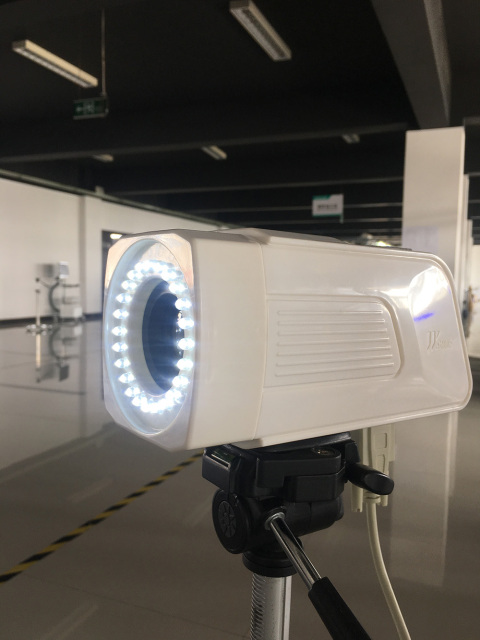

11) Light source types of lens: multi-point circular LED group
12) Lens focus mode: fast automatic or manual focusing
13) 360 degree angle observation imported control handle
4.Software Features
1) Possessing functions of real-time, freezing, collecting, processing, pseudo-color, measuring, comparing, saving, editing images and others.
2) Editing report quickly and easily, and lots of practical expert diagnosis thesaurus, templates, making it easy to tune out and edit
3) Dynamic video without time limits and storage systems
4) More than 300,000 cases storage capacity
5) Large C / S structure database server
6) Compatible with the PACS system, with a sound network system function
7) With rich standard body parts map and typical case images and diagnostic results to help doctors quickly and accurately diagnose the illness
8) Connected with HIS to transmit patient information via the internet

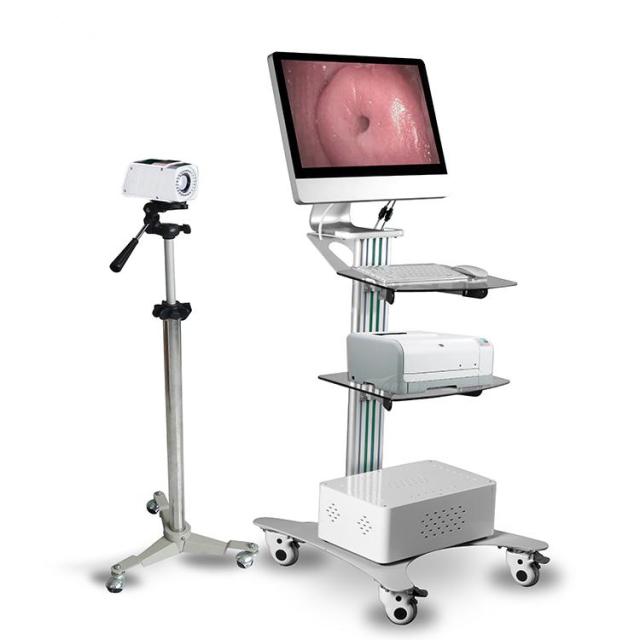

5.Standard Configuration
Main unit;Computer;Monitor;Camera;Printer
6.Packing details
Packing size: 66*56*108
Gross weight: 53KG
7.Others
Warranty:18 monthes
Payment term:T/T in advance
Delivery period:3-5 day after payment
