Affordable Solution: An ideal cheap portable ultrasound machine for clinics, rural healthcare, and veterinary practices.
Lightweight & Portable: Weighs only 10.5 kg with compact dimensions (450×350×450 mm) for easy transport.
12" HD Display: Clear imaging with 800×600 resolution for accurate diagnosis.
Dual Probe Sockets: Supports two probes simultaneously for efficient workflow.
Multiple Imaging Modes: Includes B, B/B, 4B, B/M, and M modes for versatile scanning.
Reliable Architecture: Single-chip microcontroller (SCM) with 128 permanent storage.
Bilingual Interface: Operates in English and Chinese for user convenience.
Connectivity Options: PAL/SVGA video output and USB for printer and external display connection.
Photo Print Function: Direct image printing capability for instant documentation.

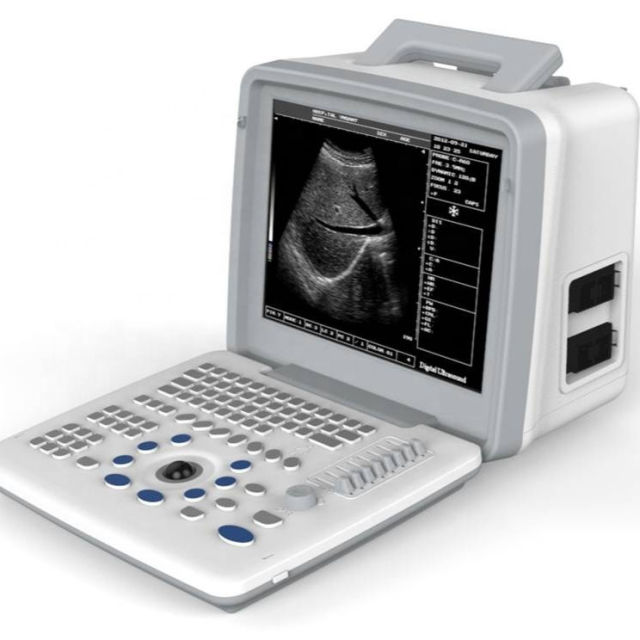

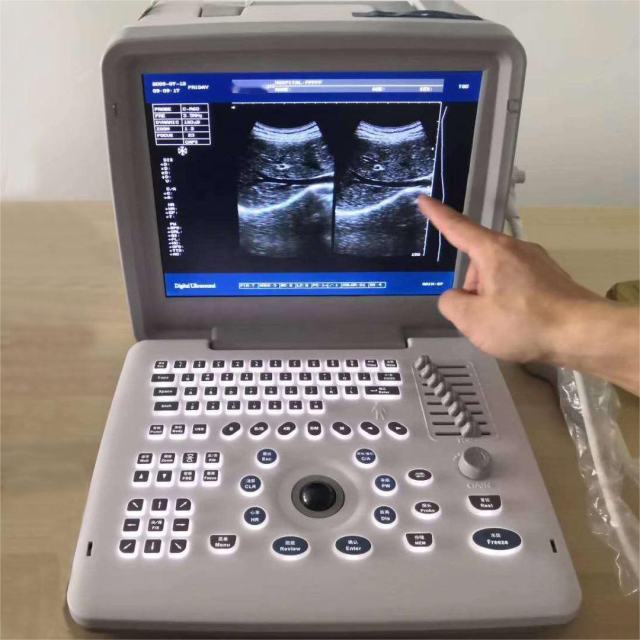

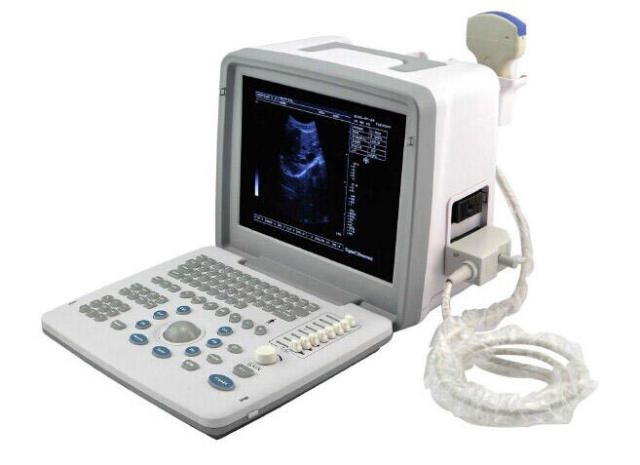

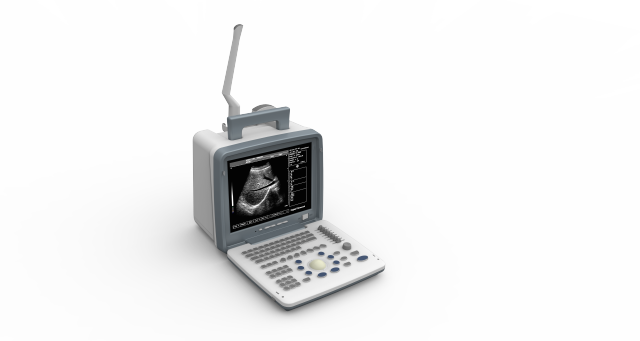

The FTL-S300 Portable B/W Ultrasound Machine is a cost‑effective diagnostic imaging system designed to meet the needs of healthcare providers seeking a reliable and affordable solution. As a true cheap portable ultrasound machine, it delivers essential imaging capabilities without compromising on quality, making it perfect for small clinics, emergency rooms, community health centers, and veterinary practices.
Built on a stable single‑chip microcontroller platform, the FTL-S300 offers consistent grayscale imaging with multiple display modes. Its dual probe socket design allows seamless switching between convex, linear, or transvaginal transducers, accommodating abdominal, gynecological, and small‑parts examinations. The lightweight construction and compact footprint ensure this cheap portable ultrasound machine can be easily moved between departments or to remote locations.
Below is a detailed specification table:
| System Specifications | Details |
|---|---|
| Model | FTL-S300 |
| Type | Portable B/W Ultrasound / Cheap Portable Ultrasound Machine |
| Display | 12" HD, Resolution: 800×600 |
| System Architecture | Single-chip microcontroller (SCM) |
| Storage | 128 permanent storage |
| Probe Sockets | 2 (supports two probes simultaneously) |
| Elements | 80 elements |
| Imaging Modes | B, B/B, 4B, B/M, M |
| Languages Supported | English, Chinese |
| Connectivity | PAL video output, SVGA video output, USB |
| Printer Support | Sony, Mitsubishi, and other thermal printers |
| Special Functions | Photo print capability |
| Probe Options | Convex (3.5 MHz), Transvaginal (6.5 MHz), Linear (7.5 MHz) |
| Packaging Dimensions | 450mm × 350mm × 450mm (Carton) |
| Weight | 10.5 kg |
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
