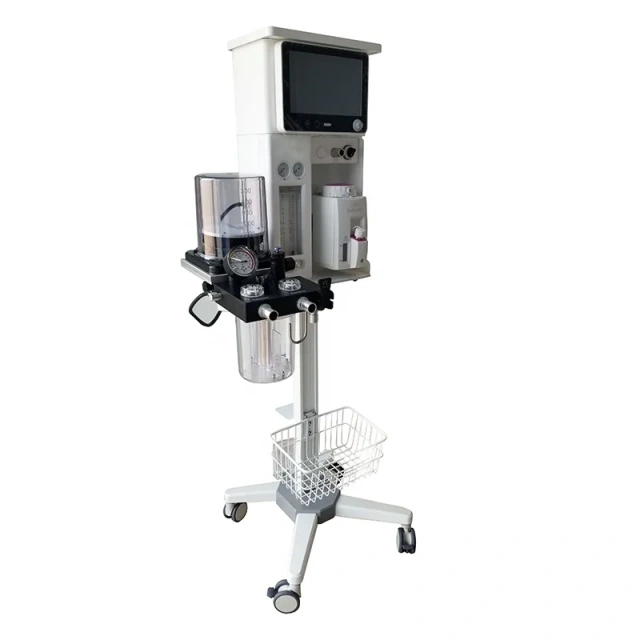

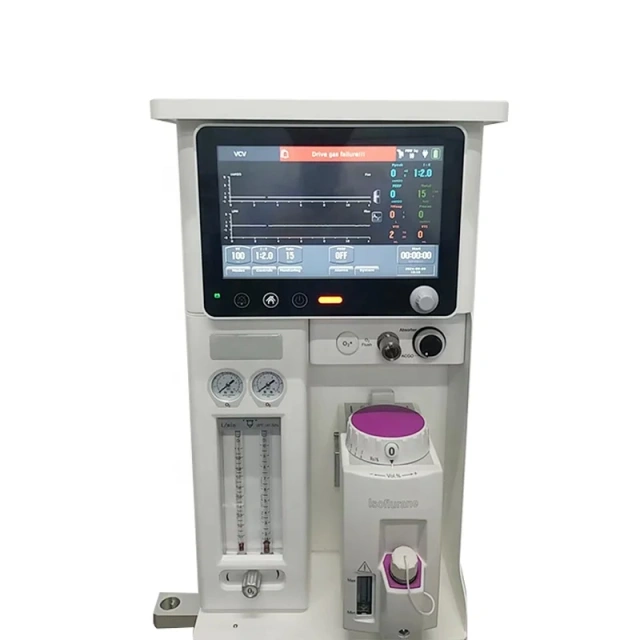

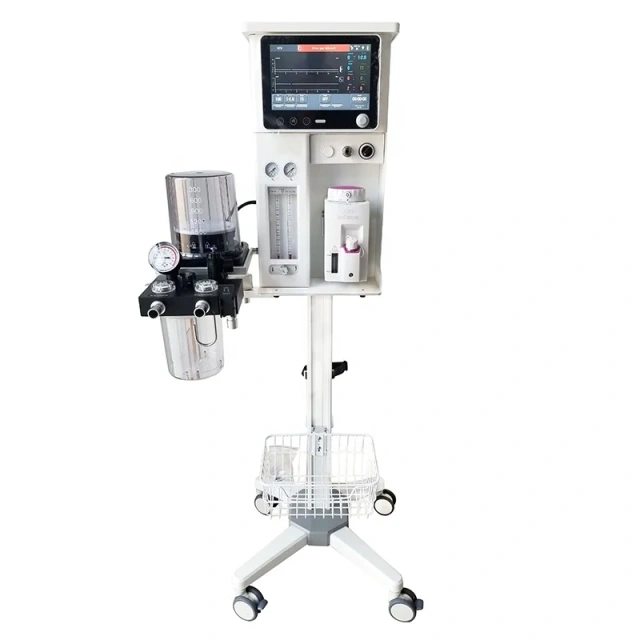

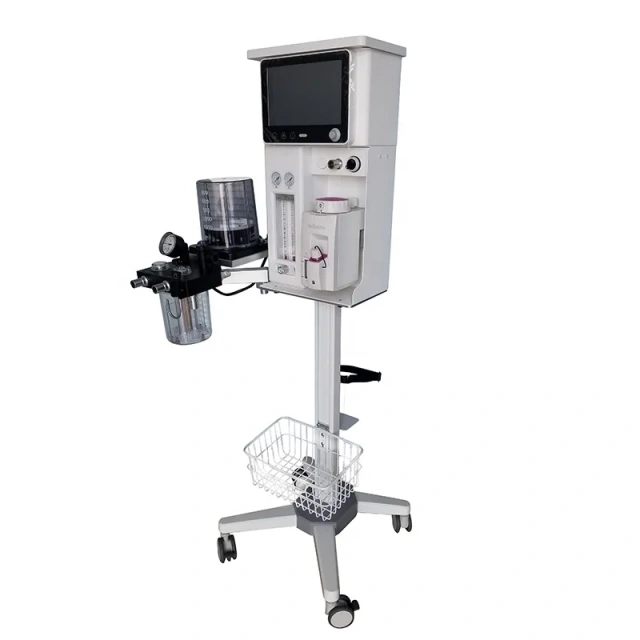

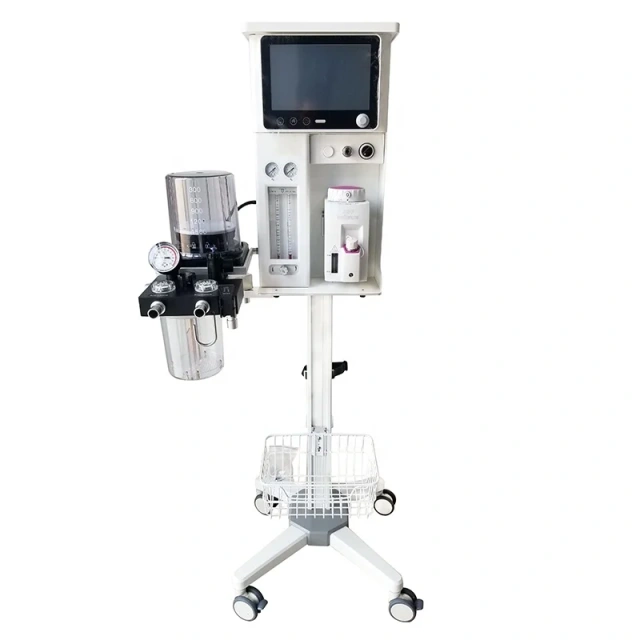

Animal Mobile Trolly Equine Anesthesia Veterinary Anesthesia Respirator

FTLAV710DV Veterinary Anesthesia Machine is an very excellent machine. It is portable and functional,which ensure it is a safe, stable and quality product. It is used in veterinary hospital, lab, farm and zoo etc.Gas Source:O2,O2&Air/N2O(Option);Flow Meter: 2 tubes O2,O2&Air(Option),O2&N2O(Option);O2 Flush:35-75L/min;Selectatec Mounting Bar: Single;CO2 Circle Absorber:Rebreath;ACGO Port: Non-Rebreath;One Key Switch: Switch between Rebreath or Non-Rebreath;Top Handle:Move easily;Safe Pressure Valve:less than10kpa;O2 Lost Alarm:Sound Alarm(Option);Screen:10.1"TFT touch Screen;Mode:VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual,SIMV-PRVC(Option);Electric PEEP;Battery Type:Li-ion,3 hours working;FiO2,EtCO2,EtAA(Option);
Specifications
Gas Supply:Gas Source: O2,or O2&Air(Option), or O2&N2O(Option);Gas Source Pressure Gauge: O2,or O2&Air(Option), or O2&N20(Option);Pressure of Pipeline inlet:O2,280kPa~600kPa/41Psi~87Psi, less than 180L/min;N2O(Option),280kPa~600kPa/41Psi~87Psi,less than180L/min;Air(Option),280kPa~600kPa/41Psi~87Psi, less than 180L/min;Security Valve: release pressure less than 10 kpa;O2 Lost Alarm(Option):Sound alarm, alimumun cylinder with whistle;N2O cut off valve protection(Option): when O2 is lost, N2O will be cut off.
Flow Meter:2 tubes high precision flow meter,0~1L/min,1.1L/min~10L/min; or 0L/min~10L/min(O2&Air or O2&N2O).Precision: At 20 degree, atmospheric pressure is 101.3kPa, the precision of flow meter is level:2.5;O2&N2O Linkage Device(O2&N2O,Option):make insure O2 concentration is not lower than 25%;O2 Flush: 35L/min~75L/min;One Key Switch: Switch between rebreath and Non-Rebreath;ACGO Port: Non-Rebreath;Selectatec Mounting Bar: single place used for vaporizer, it is easy to replace vaporizer;Anesthesia Vaporizer: one of lsoflurane/Halothane/Sevoflurane;Respiration System/CO2 Circle Absorber/Rebreath:Soda Llme Chamber: 800mL or 1600ml(Option);Airway Pressure Gauge:-20-100cmH2O;Pop Off Vlave: with one key to close; APL valve(Option): 0.19~6kPa;
Dimension&Weight: Trolley Stand: 55cm*56cm*153cm,50kg;
Standard Configuration:Anesthesia machine, one unit X60 Anesthesia vaporizer, one set adult disposable breath circuit. one set pediatric disposable breath circuit, 0.5,1.2,3L airbag, O2, or O2&N2O, or O2&Air gas source pipeline.
Alarm settings:Tidal volume high/low alarm; Minute ventilation high/low alarm; Respiratory rate high/low alarm; Airway pressure high/low alarm; Continuous Positive Airway Pressure/Negative pressure alarm; Apnea alarm; Oxygen deficiency alarm; Ac power failure alarm ,Low battery alarm,EtCO2,EtAA etc.
