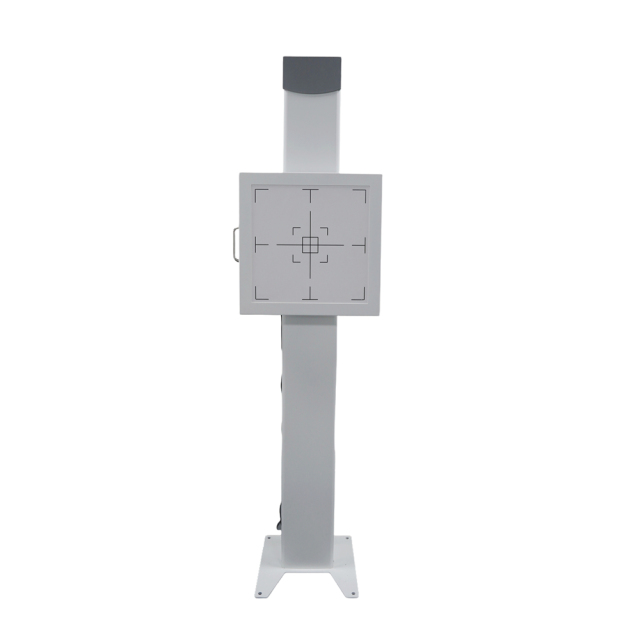

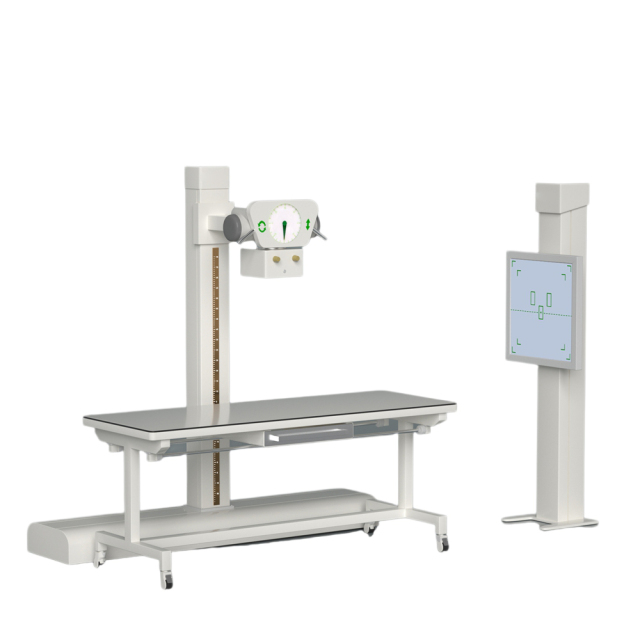

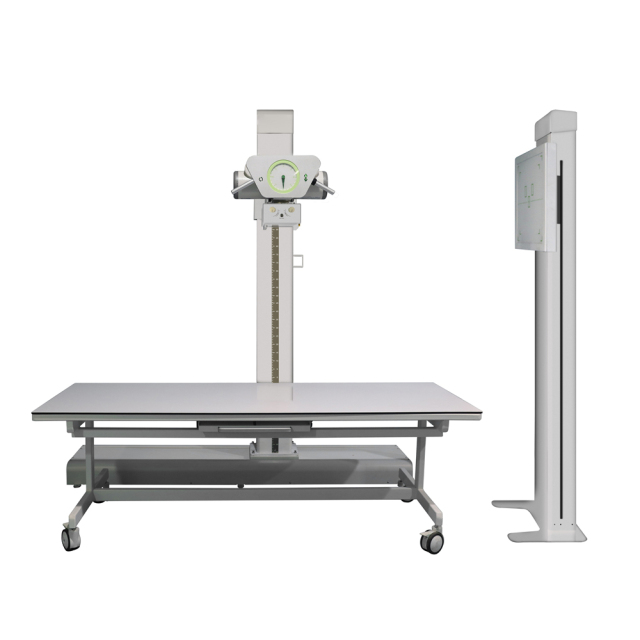

This Stationary X Ray Machine is available for customization
32KW/50KW/65KW can be customized according to customers’needs
|
Generator |
|
|
Power voltage |
1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10% |
|
Maximum Working Frequency |
≥30KHz |
|
Nominal Electric Power |
32kw（@100kv，320mA，100ms） |
|
KV range |
40~125KV |
|
mA range |
40~400mA |
|
mAs range |
0.1~500mAs |
|

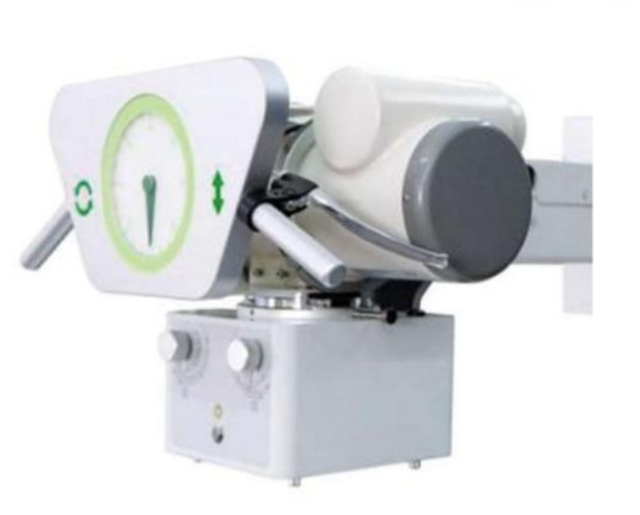

X-ray tube |
|
|
Working voltage |
40KV-125KV |
|
Maximum power (0.1 S) |
Small focus 20 kw, Large focus 40 kW |
|
Nominal value |
Large focus 1.2，Small focus 0.6 |
|
Maximum heating filament characteristics |
5.3A |
|
Anode speed (50HZ) |
2800rpm |
|
Anode angle |
12° |
|
Inherent filtering |
1.0mmAL/75kV |
|
Anode Heat Content |
110KJ(150KHU) |
|
Tube component heat capacity |
900KJ（1300KHU） |
