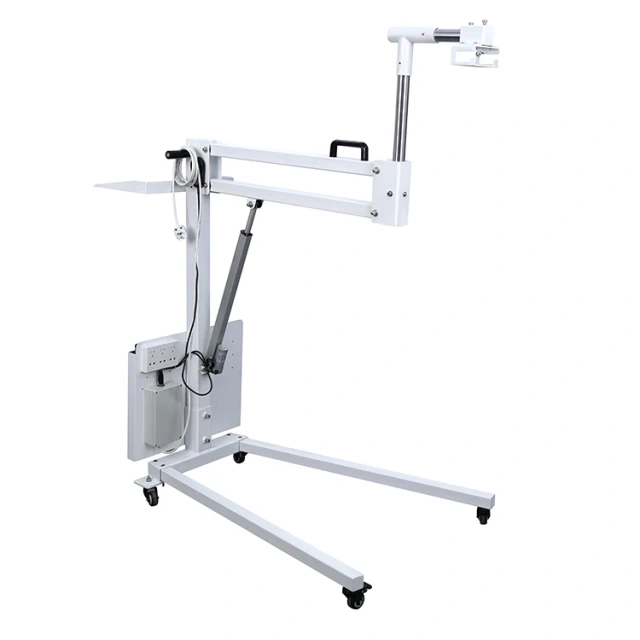

Our X-ray Chest Stand is designed to provide stable, precise, and adjustable positioning for chest radiographs. Built with durable materials and a user-friendly structure, it supports accurate imaging in hospitals, clinics, and mobile diagnostic units.

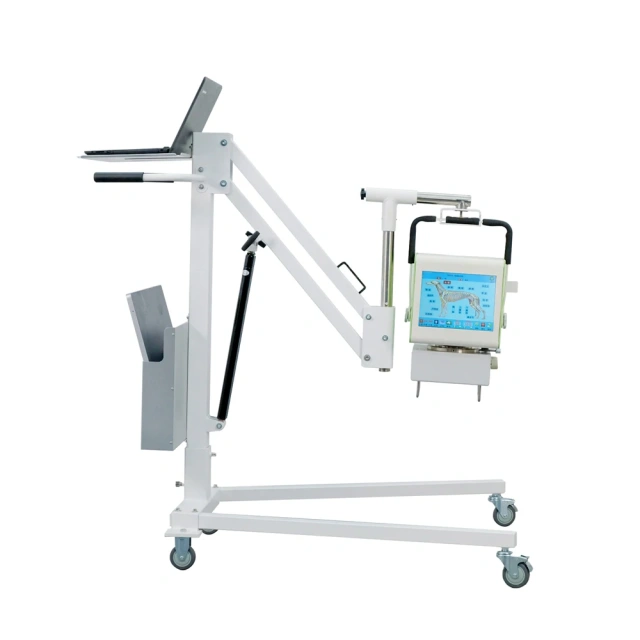

High Quality Xray Stand FTL-PS1 for Digital X-ray Machine High Frequency And High Penetration X-ray Inspection Tools | ||||||||
Technical Specification | ||||||||
Generator | Product Model | FTLF056-PD | ||||||
Product describtion/Type | Portable Combined High Frequency X-ray | |||||||
Working frequency | 80~200kHz | |||||||
Input | ||||||||
Mains phase/Voltage | 100~240VAC/48VDC | |||||||
Frequency | 50Hz/60Hz | |||||||
Nominal/Max Power | 5.6KW | |||||||
KV Range | 40~125KV | |||||||
KV Rising Time | ≤1ms@100KV(10%~90%) | |||||||
Accuracy of KV | ±5% | |||||||
Output Max mA | 100mA | |||||||
Accuracy of Tube Current | ±(5%+1mA)@210ms | |||||||
±20%@<10ms | ||||||||
mAs Range Non-AEC | 0.1~320mAs | |||||||
Accuracy of mAs | ±(5%+0.2mAs)@>5ms | |||||||
±(10%+0.2mAs)@≤5ms | ||||||||
Exposure Time Range | 2ms~10000ms | |||||||
Accuracy Exposure Time | ±(2%+0.2ms)@>5ms | |||||||
±(5%+1ms)@≤5ms | ||||||||
Norminal Focal Spot Size | 0.6mm/1.8mm | |||||||
MBK parameters Max Anode Heat Storage | 20kJ | |||||||
Anode Disk Target Angle | 15 | |||||||
Communication | RS232/WIFI | |||||||
Certificate CE/Registration Certificate | ISO13485 | |||||||
Flat Panel Detectors | Detector Technology | a-Si | ||||||
Scintillator | CsI | |||||||
Image Size | 43×43 cm | |||||||
Pixel Matrix | 3072×3072 (17×17 in) | |||||||
Pixel Pitch | 140 μm | |||||||
A/D Conversion | 16 bit | |||||||
Minimum Detectable Dose | 14 nGy | |||||||
Maximum Linear Dose (RQA5) | 110 μGy | |||||||
Spatial Resolution | 3.6 LP/mm | |||||||
Data Interface | GigE /802.11ac | |||||||
Power Dissipation | 20 W | |||||||
Adapter Input | AC 100-240V,50-60Hz | |||||||
Dimensions | 46×46×1.5 cm | |||||||
Computer | Intel i5 processor ; 8 G memory; 2 G independent graphics card; 128 G solid state hard disk 1 TB mechanical hard disk; PCI-E and ethernet dual gigabit network interface; 22.5 inch dell professional small dot display; operating system: win10. | |||||||
Tell us about your needs — we’ll recommend the best configuration + DR panel combo for your workflow. We have 23 years of manufacturing experience — you’re in good hands.
