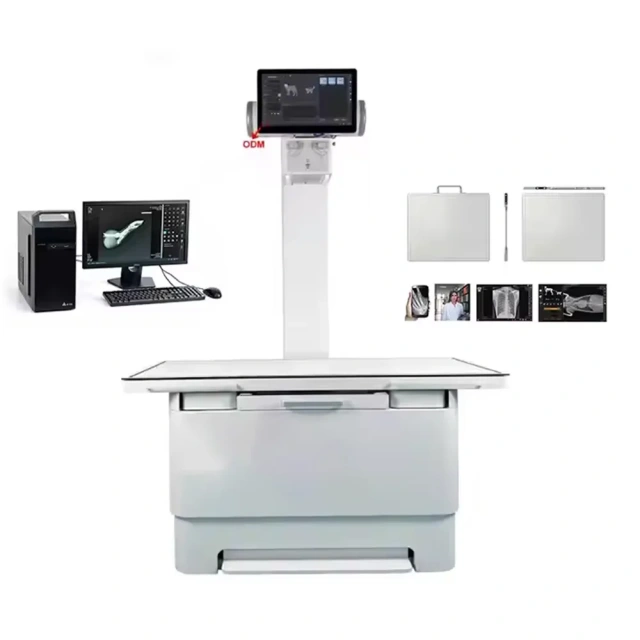

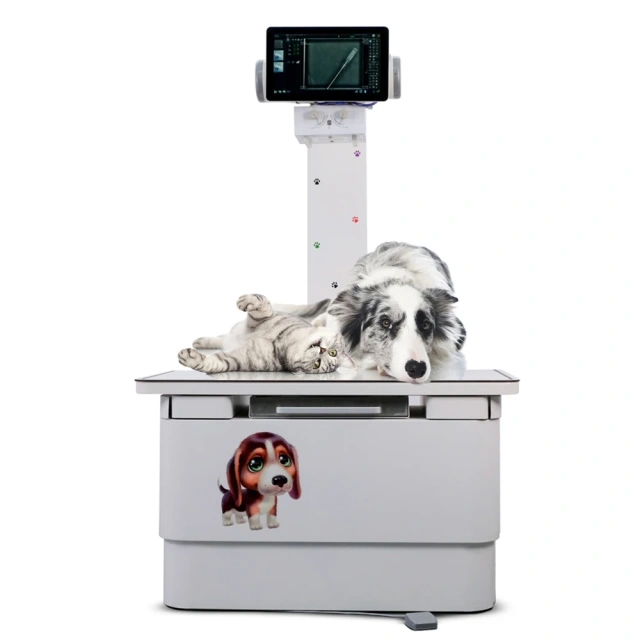

Factory Direct Sale FTL-VF1 Stand +Bed for Veterinary Digital X-ray Imaging System Medical Use High-Energy X-ray Technology
|
||||
|

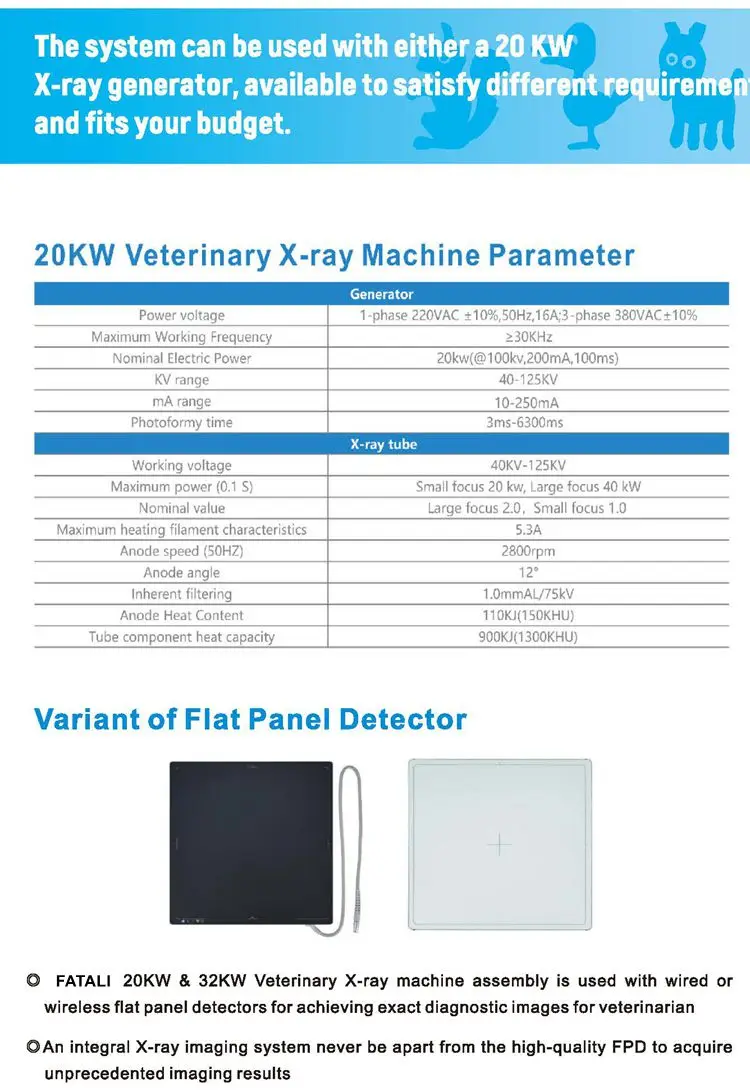

Technical Specification
|
||||
|
Generator
|
Power voltage
|
1-phase 220VAC ±10%,50Hz,16A;3-phase 380VAC±10%
|
||
|
Maximum Working Frequency
|
≥30KHz
|
|||
|
Nominal Electric Power
|
20kw(@100kv,200mA,100ms)
|
|||
|
KV range
|
40-125KV
|
|||
|
mA range
|
10-320mA
|
|||
|
mAs range
|
0.1-400mAs
|
|||
|
Photoformy time
|
3ms-6300ms
|
|||
|
X-Ray
Tube |
Working voltage
|
40KV-125KV
|
||
|
Maximum power (0.1 S)
|
Small focus 20 kw, Large focus 40 kW
|
|||
|
Nominal value
|
Large focus 1.2,Small focus 0.6
|
|||
|
Maximum heating filament characteristics
|
5.3A
|
|||
|
Anode speed (50HZ)
|
2800rpm
|
|||
|
Anode angle
|
12°
|
|||
|
Inherent filtering
|
1.0mmAL/75kV
|
|||
|
Anode Heat Content
|
110KJ(150KHU)
|
|||
|
Tube component heat capacity
|
900KJ(1300KHU
|
|||
