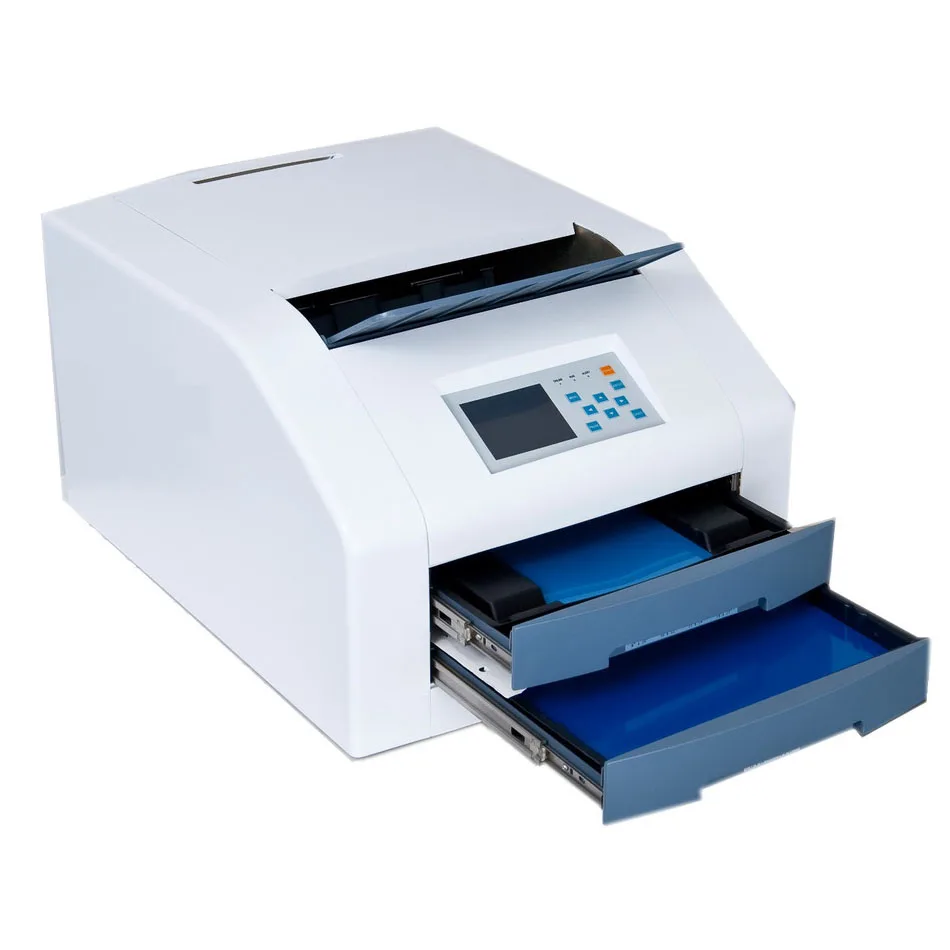

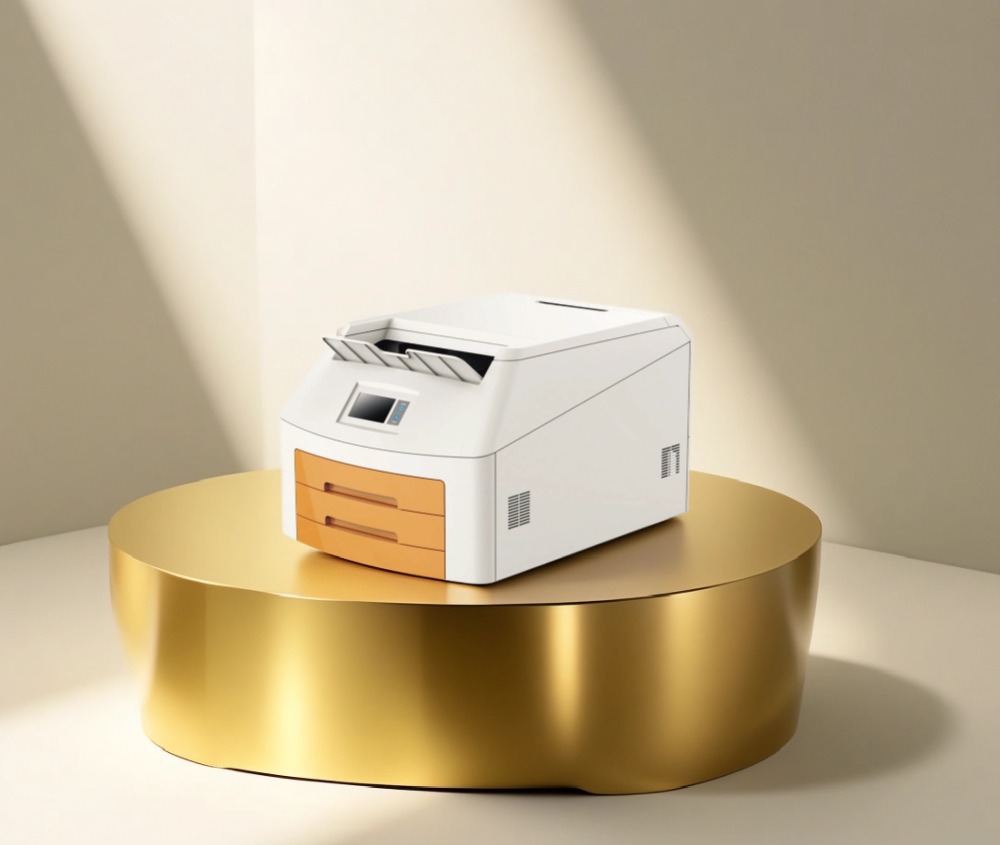

Upgrade your diagnostic workflow with Fatali Medical’s high-resolution X-ray Film Printer, designed to deliver clear, fast, and consistent dry imaging for all your DR, CR, MRI, and CT scanning systems. Our dry imager ensures precision film output with no chemicals, no water, and low maintenance—ideal for modern radiology departments, clinics, and diagnostic centers.
An X-ray printer, also known as a medical dry imager, is a device that prints diagnostic images from digital radiography equipment (such as DR, CR, MRI, CT, and traditional X-ray machines) onto medical-grade dry film. Unlike traditional wet printers, dry imagers require no chemicals or water, offering a cleaner and more efficient solution for printing high-resolution radiographic images.
✅ Supports multiple modalities: DR (Digital Radiography), CR (Computed Radiography), MRI, CT
✅ Compatible with traditional and portable X-ray machines
✅ Dry thermal printing – no chemicals or water required
✅ PACS & DICOM compatibility
✅ High-resolution print output: 320dpi / 500dpi
✅ Film sizes supported: 8x10, 10x12, 14x17 inches
✅ Compact, quiet, and low-maintenance design
Fatali’s dry film printers can be integrated with:
Fixed or mobile DR/CR systems
High-frequency CT/MRI scanners
Conventional analog X-ray machines with digital upgrade kits
Portable and handheld X-ray machines for field use
This flexibility makes the printer ideal for both large hospitals and small clinics, even mobile diagnostic vans.
(Film printer chip video)
📦 Unpack and connect the printer to your computer or PACS system
💾 Install DICOM printing software
🔌 Power on and calibrate the printer using built-in settings
🖼️ Send images from DR/CR/MRI/CT to the printer via DICOM
🖨️ Adjust film size & density as needed before printing
Our technical team offers remote setup assistance and manuals to guide your technicians through installation and daily use.
| Attribute | Specification |
|---|---|
| Product Name | X-ray Digital Printer / Dry Thermal Imager |
| Model | FTL-P450 / FTL-300 |
| Printing Technology | Direct Dry Thermal Imaging |
| Resolution | 320 dpi / 508 dpi |
| Gray Scale Resolution | 12–14 bit (up to 4096 shades) |
| Supported Film Sizes | 8"×10", 10"×12", 11"×14", 14"×17" (dual tray supported) |
| Throughput | 70–90 sheets/hour (depends on film size) |
| Connectivity | Ethernet (RJ45), USB, DICOM 3.0 |
| Application | X-ray Room, Radiology Dept, DR/CR/CT/MRI Film Output |
| Function | Printing diagnostic medical dry films |
| Power Source | Electric, AC 100–240V, 50/60Hz |
| Power Consumption | ≤600W printing, ≤75W standby |
| Dimensions | Approx. 560 × 410 × 720 mm |
| Weight | 40–50 kg |
| Operating Temperature | 5–35 °C |
| Storage Temperature | -22 °C to 50 °C |
| Operating Humidity | 35%–85% RH |
| Storage Humidity | 30%–95% RH |
| Shelf Life | 3 years |
| Certifications | CE, ISO |
| Warranty | 1 year |
🇧🇷 Portuguese (Brazil): Impressora de Raios X / Impressora Médica a Seco
🇪🇸 Spanish: Impresora de Rayos X / Impresora Médica de Secado
🇫🇷 French: Imprimante à Rayons X / Imprimante Médicale à Sec
🇩🇪 German: Röntgendrucker / Trockenbilddrucker
🇮🇳 Hindi: एक्स-रे प्रिंटर / ड्राई इमेजर
🇸🇦 Arabic: طابعة الأشعة السينية / جهاز طباعة جافة
🇹🇷 Turkish: Röntgen Yazıcısı / Kuru Görüntüleyici
🇻🇳 Vietnamese: Máy in X-quang / Máy in phim y tế khô
🇲🇾 Malay: Pencetak X-ray / Pencetak Filem Kering
🇵🇭 Filipino/Tagalog: X-ray Printer / Dry Film Imager
🇳🇬 Yoruba/Hausa (Nigeria): X-ray Printer / Na’ura ta buga hoton asibiti
Dry imager main unit
Starter dry film pack
DICOM print software
User manual & installation support
General radiography & orthopedics
Emergency & trauma imaging
MRI/CT scan reporting
Private clinics & portable radiology
CE & ISO certified equipment
Global delivery with technical support
Cost-effective, hospital-grade printing performance
