Key Failure Areas and Maintenance Strategies of DR Systems

Introduction

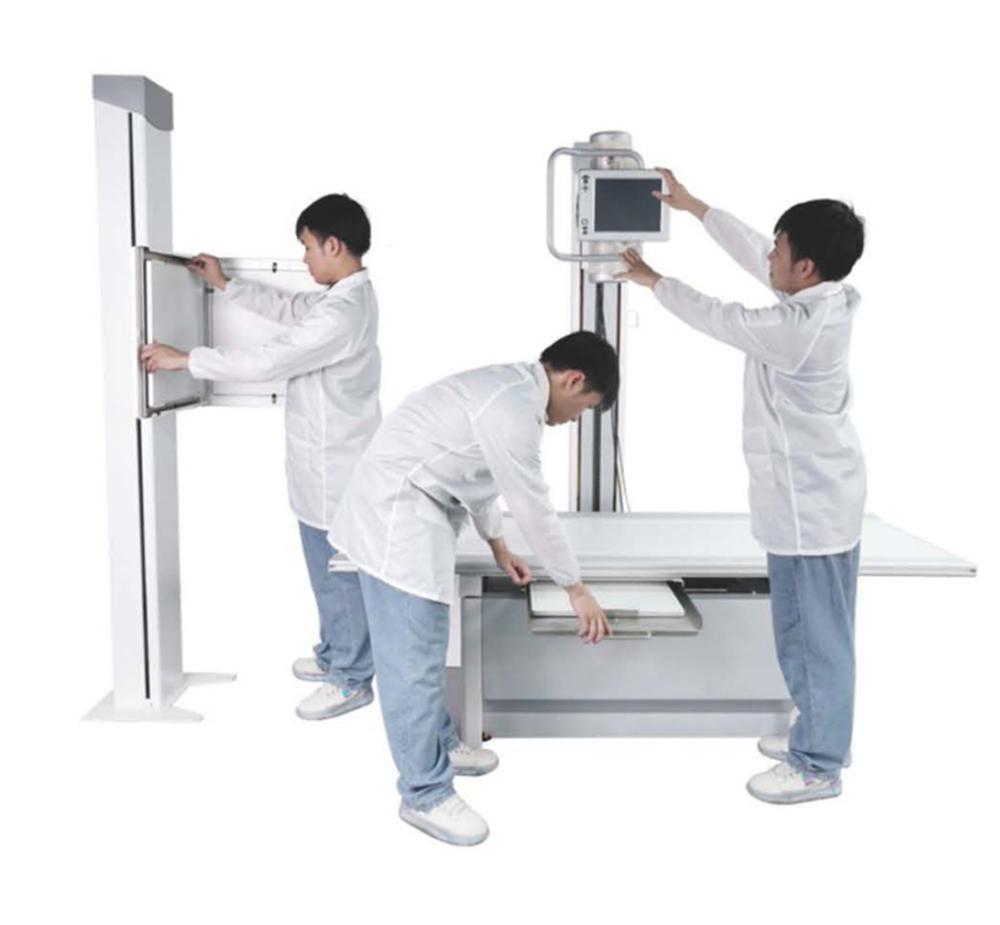

DR (Digital Radiography) Equipment: Common Failure Points and Causes of Core Components DR (Digital Radiography) systems are central to medical imaging diagnostics, involving complex mechanical, electrical, and software systems. Below is an analysis of common failure points and causes across eight key components
Details

DR (Digital Radiography) Equipment: Common Failure Points and Causes of Core Components

DR (Digital Radiography) systems are central to medical imaging diagnostics, involving complex mechanical, electrical, and software systems. Below is an analysis of common failure points and causes across eight key components:



1. X-ray Tube

Common Failure Causes:

  • Filament aging: Frequent high mA exposures lead to filament evaporation and breakage.

  • Target damage: Overheating or poor cooling causes anode target surface ablation (e.g., tungsten target cracking).

  • Vacuum degradation: Metal vapor contamination leads to internal discharge or arcing.

  • Bearing wear: Abnormal anode rotation causes noise or unstable speed.

Typical Failure Symptoms: Exposure failure, image fogging, abnormal tube current alarms.


2. Flat Panel Detector (FPD)

Common Failure Causes:

  • Physical damage: Impact causes damage to internal crystals or circuit boards (e.g., CsI layer detachment).

  • Temperature/humidity sensitivity: Environmental overload leads to TFT array failure or calibration drift.

  • Charge retention: Frequent use increases dark current noise, causing image artifacts (e.g., grid-like streaks).

  • Power failure: Damage to low-voltage power modules prevents detector activation.

Typical Failure Symptoms: Image segmentation, black spots, calibration failure.


3. Mechanical Components

Common Failure Causes:

  • Wear of moving parts: Poor lubrication of suspension arms/column rails causes jamming or misalignment.

  • Motor/encoder failure: Belt breakage or servo motor overheating leads to movement failure.

  • Limit switch malfunction: Mechanical impact damages sensors, triggering safety protection.

  • Counterweight imbalance: Long-term use shifts balance, affecting motion smoothness.

Typical Failure Symptoms: Abnormal motion noise, positional deviation, emergency stop activation.


4. Electrical Components

Common Failure Causes:

  • Power fluctuations: Aging filter capacitors cause voltage instability, triggering protective shutdown.

  • Relay/contactor failure: Oxidized contacts disrupt control signals (e.g., exposure not triggered).

  • Sensor malfunction: Contaminated/damaged photoelectric or limit sensors cause false triggering.

  • Loose cable connectors: Long-term vibration causes poor contact (e.g., bed elevation failure).

Typical Failure Symptoms: No device response, intermittent power loss, error code alarms.


5. High-Voltage Cables

Common Failure Causes:

  • Insulation aging: Prolonged bending or high temperatures crack silicone rubber, causing HV discharge.

  • Shield layer rupture: Frequent movement causes localized breakdown (evident as a sizzling noise during exposure).

  • Connector oxidation: Poor contact causes tube voltage/current fluctuations.

Typical Failure Symptoms: Interrupted exposure, uneven image dose, high-voltage alarms.


6. High-Voltage X ray Generator

Common Failure Causes:

  • IGBT module damage: Overcurrent or poor heat dissipation burns out the inverter circuit.

  • High-voltage capacitor leakage: Dried electrolyte causes unstable kV output.

  • Feedback circuit anomaly: Aging sampling resistors disrupt closed-loop control (e.g., large deviation between actual and set kV).

  • Insulating oil degradation: Moisture reduces dielectric strength, causing internal discharge.

Typical Failure Symptoms: Exposure errors, kV/mA out of limits, device protective lockout.


7. High-Voltage Oil Tank (Certain Models)

Common Failure Causes:

  • Seal failure: Aged O-rings cause oil leakage, resulting in internal gap discharge.

  • Oil degradation: Long-term high-temperature carbonization produces conductive particles, reducing insulation strength.

  • Oil level sensor malfunction: False low oil alarm triggers protection mechanisms.

Typical Failure Symptoms: High-voltage arcing, oil temperature alarms, interrupted exposures.


8. Software System

Common Failure Causes:

  • Compatibility conflicts: OS updates lead to driver mismatches (e.g., DICOM communication failure).

  • Database corruption: Unexpected power loss results in lost patient data or image storage errors.

  • Virus infection: Unisolated networks allow malware to interfere with control programs.

  • Missing calibration files: Abnormal gain/offset parameters cause banding artifacts.

Typical Failure Symptoms: System freezes, image transmission failure, function module startup errors.


Failure Rate Statistics of DR Core Components

(Based on industry reports, maintenance data, and literature reviews. Actual results may vary by brand, usage environment, and maintenance quality.)

Component Failure Rate (%) Key Influencing Factors Typical Failure Cycle
X-ray Tube 25%–30% Exposure frequency, cooling efficiency, user habits 2–5 years (shorter under heavy use)
Flat Panel Detector 20%–25% Temperature/humidity, physical shock, calibration 3–7 years (depends on technology)
Mechanical Components 15%–20% Motion frequency, lubrication, load weight 5–10 years (needs regular maintenance)
High-Voltage Generator 10%–15% Heat dissipation, voltage stability, component aging 5–8 years
High-Voltage Cable 8%–12% Bending cycles, insulation aging, plugging frequency 3–5 years
Electrical Components 8%–10% Power quality, oxidation, electromagnetic interference Over 5 years (prone to sudden faults)
HV Oil Tank 5%–8% Sealing integrity, oil quality, ambient temperature Over 10 years (maintenance-dependent)
Software System 3%–5% Compatibility, virus protection, operator error No fixed cycle (random failure)

Maintenance Strategy Recommendations

  • Preventive Maintenance: Replace vulnerable parts regularly (e.g., X-ray tube bearings, high-voltage cables).

  • Environmental Control: Maintain stable temperature (20–25°C) and humidity (40–60% RH).

  • Software Management: Regularly back up system images and disable unnecessary USB ports.

  • Operator Training: Standardize technician workflows (e.g., avoid repeated high-dose exposures in short timeframes).


Conclusion

DR equipment failure rates are closely related to usage intensity, environmental conditions, and maintenance investment. Through preventive maintenance, standardized operations, and environmental optimization, the lifespan of core components (e.g., X-ray tube life extended by over 30%) can be significantly improved. Medical institutions are advised to develop customized maintenance strategies based on their usage scenarios and refer to the manufacturer's MTBF (Mean Time Between Failures) data for risk assessment.
